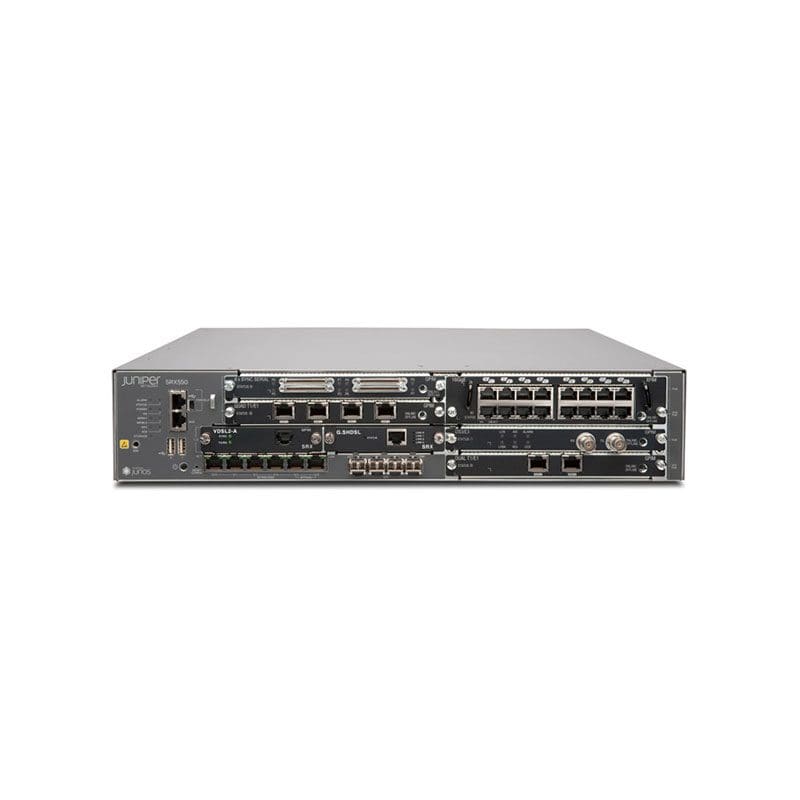

SRX550-645DP-M-TAA Juniper Networks SRX550 Services Gateway

SRX550‑645DP‑M‑TAA Specifications

Juniper SRX550‑645DP‑M‑TAA Security Services Gateway (TAA Compliant)

Manufacturer: Juniper Networks
Manufacturer Model: SRX550‑645DP‑M‑TAA
Product Line: SRX Series Services Gateway
Product Series: SRX550
Product Type: Enterprise Security Appliance (Firewall/VPN/Router)
Product Name: Juniper SRX550‑645DP‑M‑TAA Security Gateway

KEY FEATURES:
Chassis, 2 RU rack‑mountable security appliance
TAA Compliant hardware
Memory: 4 GB DRAM
Internal Storage: 8 GB CompactFlash
Fixed I/O Ports: 6 × 10/100/1000 BASE‑T + 4 × 1 GbE SFP fiber ports
Expansion Slots: 2 × Mini‑PIM; 6 × GPIM (or combinations with XPIM)
USB Ports: 2 × USB Type‑A
PoE Support: Up to 40 PoE ports (802.3af/at) with maximum 247 W PoE budget
Management Ports: Included onboard

PERFORMANCE:
Firewall Throughput: Up to ~7 Gbps (max performance class)
IPSec VPN Throughput: ~1.0 Gbps
Concurrent Sessions: High session capacity (hundreds of thousands)
Security Policies Supported: Thousands of policies (enterprise class)

ENVIRONMENTAL & RELIABILITY:
Designed for medium‑to‑large enterprise and branch security deployments
Operating Temperature: Standard enterprise range (approx. 0 °C to 40 °C)
Humidity: Non‑condensing supported
Redundant Power Supply Support: Yes (dual power slots)

PHYSICAL:
Form Factor: 2 RU rack‑mountable chassis
Dimensions (W × H × D): ~17.5″ × 3.5″ × 18.2″ (~44.4 × 8.8 × 46.2 cm)
Weight: ~21.96 lb (~9.96 kg) (without interface modules, with one PSU)
Power Supply: Included one 645 W DC power supply with PoE support; redundant PSU supported
Average Power Consumption: Enterprise class
Airflow/Cooling: Front‑to‑back airflow design
