SRX550-M-SYS-JE-AC Juniper SRX550 Services Gateway security

SRX550‑M‑SYS‑JE‑AC Specifications

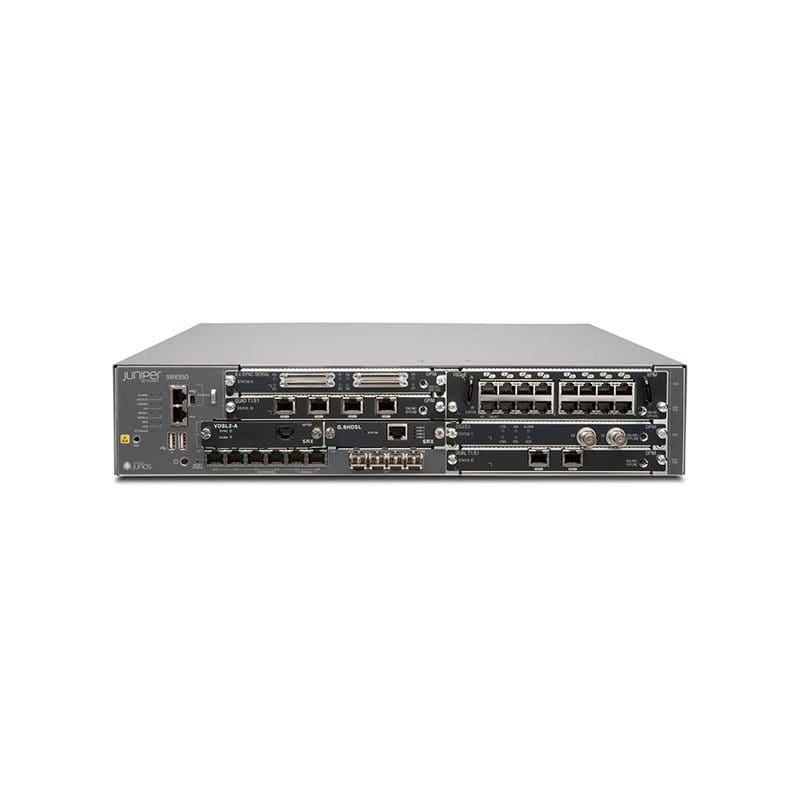

Juniper Networks SRX550‑M‑SYS‑JE‑AC Services Gateway

Manufacturer: Juniper Networks
Manufacturer Model: SRX550‑M‑SYS‑JE‑AC
Product Line: Juniper SRX Series Services Gateways
Product Series: SRX550
Product Type: Enterprise Firewall / Security Services Gateway
Product Name: Juniper SRX550‑M‑SYS‑JE‑AC Services Gateway

KEY FEATURES:
6 × 10/100/1000BASE‑T Ethernet ports and 4 × Gigabit SFP ports
2 × SRX Series Mini‑PIM slots and 6 × GPIM slots for expansion
Junos Software Enhanced (Firewall, NAT, IPSec, Routing, MPLS, Switching, Application Security) included
USB ports for external storage
Rack‑mountable 2U design
Supports up to 40 PoE ports (802.3af/at, up to 247 W)

PERFORMANCE:
Firewall performance (max): ~7 Gbps
Firewall throughput (IMIX): ~2 Gbps
Firewall throughput (64‑byte): ~700 Kpps
Firewall throughput (HTTP): ~2 Gbps
IPsec VPN throughput: ~1 Gbps
Intrusion Prevention System (IPS) throughput: ~800 Mbps
Antivirus throughput: ~300 Mbps
New sessions per second (sustained, TCP, 3‑way): ~27,000
Maximum concurrent sessions: ~375,000
IPsec VPN tunnels supported: ~2,000
Route table size (RIB/FIB): ~1.5 million / 750,000
Maximum security policies: ~8,000
Maximum number of users supported: unrestricted
Maximum number of virtual routers: ~128
Maximum VLANs: ~3,967
AppID sessions: ~65,000
IPS sessions: ~64,000
URL filtering sessions: ~64,000

ENVIRONMENTAL & RELIABILITY:
Designed for continuous enterprise operation
Operating temperature: ~32° to 104° F (0° to 40° C)
Operating humidity: ~10 % to 90 % non‑condensing
Redundant (optional) AC power (hot‑swappable) support

PHYSICAL:
Form Factor: Rack‑mountable 2U chassis
Dimensions (W × H × D): ~17.5″ × 3.5″ × 18.2″
Weight (device + PSU): ~21.96 lb (9.96 kg)
Power Supply (AC): 100–240 VAC, 645 W (single or dual)
