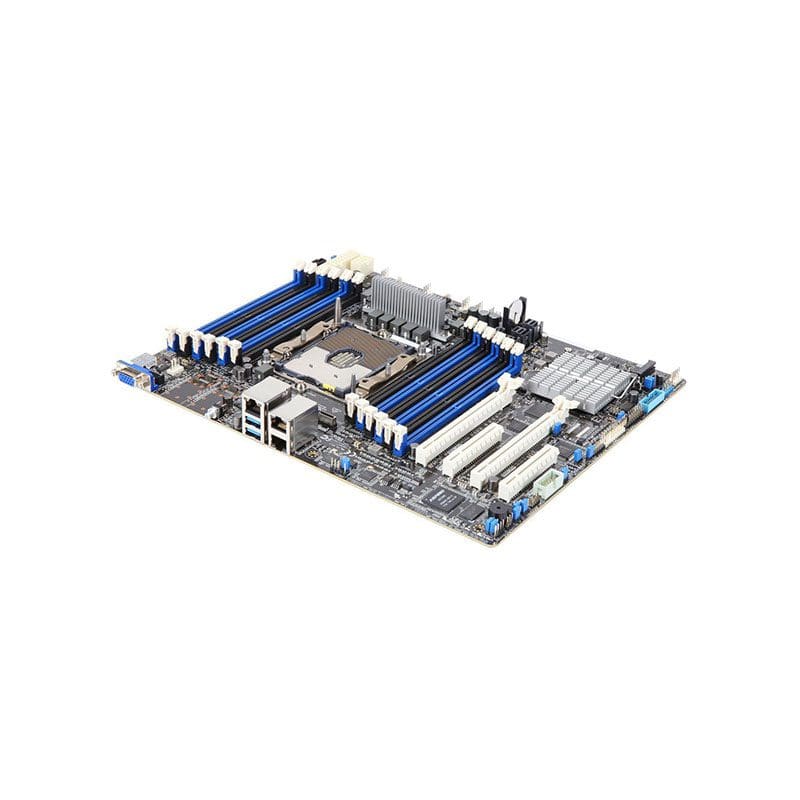

Z11PA-U12 ASUS ATX Server Motherboard LGA 3647

Z11PA-U12 Specifications

ASUS  Intel Xeon Scalable Server Motherboard

Manufacturer: ASUS
Manufacturer Model: Z11PA-U12
Product Line: ASUS Server / Workstation
Product Series: Z11PA
Product Type: Motherboard
Product Name: ASUS  Server Motherboard

KEY FEATURES:
CPU Support: 1 × Socket P (LGA 3647), supports 1st and 2nd Gen Intel Xeon Scalable processors
Chipset: Intel C621
Memory: 12 × DDR4 DIMM slots, supports RDIMM / LRDIMM / 3DS LRDIMM
Maximum Memory Capacity: 1536 GB (1.5 TB)
Memory Speed: 2933 / 2666 / 2400 MT/s
Expansion Slots: 1 × PCIe 3.0 x16, 1 × PCIe 3.0 x16 (or x8), 1 × PCIe 3.0 x8, 1 × PCIe 3.0 x8 (x4 link)
Storage: 13 × SATA III 6 Gb/s via 3 × mini‑SAS HD connectors, 1 × SATA 7-pin, 1 × M.2 (2242 / 2260 / 2280)
NVMe / High-Speed Storage: 2 × onboard OCuLink for NVMe
Networking: 2 × Intel I210AT 1 Gb Ethernet + Management LAN (iKVM)
On-Board Video: Aspeed AST2500 with 64 MB VRAM
Management: Embedded ASMB9-iKVM module for remote BIOS / KVM / video / BSOD capture
Power Connectors: 24-pin ATX + ProCool connectors

PERFORMANCE:
Total Memory: Up to 1.5 TB
Overclocking: Not specified (server-class board)
Multi-GPU: Supports dual GPUs via PCIe slots (depending on configuration)

ENVIRONMENTAL & RELIABILITY:
Operating Temperature Range: 10°C ~ 35°C
Remote Management: Full out-of-band management with KVM and BIOS access

PHYSICAL:
Form Factor / Dimensions: ATX / 30.5 × 24.4 cm
Weight: Not explicitly specified
Color: Black / Gray
