YCKHM Dell SAS+SATA 6GBPS TO PCI Express at discount

YCKHM Specifications

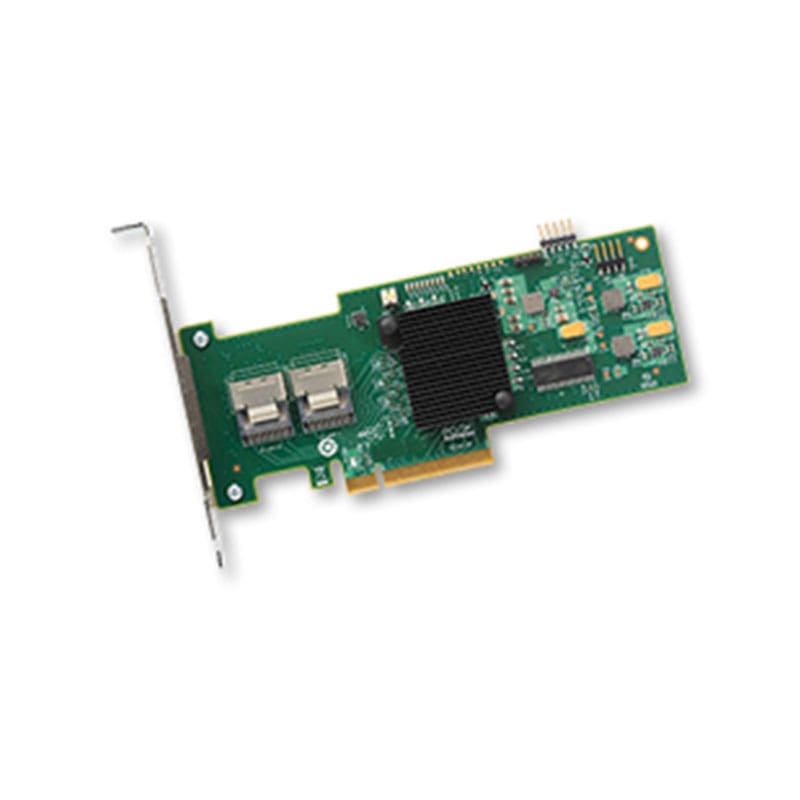

Dell LSI 9210‑8i 8‑Port 6 Gb/s SAS/SATA Host Bus Adapter (HBA)

Manufacturer: Dell
Manufacturer Model: YCKHM
Product Line: Dell SAS/SATA HBA
Product Series: LSI 9210‑8i Series
Product Type: PCI‑Express SAS/SATA Host Bus Adapter
Product Name: Dell 8‑Port 6 Gb/s SAS/SATA HBA

KEY FEATURES:

Interface Type: Serial Attached SCSI (SAS) and Serial ATA (SATA) Host Bus Adapter

Host Bus: PCI‑Express 2.0 x8

Controller Chipset: LSI SAS2008 / LSI 9210‑8i architecture

Ports: 8× SAS/SATA 6 Gb/s ports via internal mini‑SAS connectors (SFF‑8087)

Devices Supported: Up to 256 non‑RAID SAS/SATA devices

Connector Type: 2× internal mini‑SAS (vertical)

Fusion MPT Support: 2.0 multiprotocol support

Cable Support: Passive copper SAS/SATA cabling

PERFORMANCE:

Maximum Data Transfer Rate: Up to 6 Gb/s per SAS/SATA link

Throughput: High speed SAS/SATA connectivity for internal storage devices

MTBF: >2,000,000 hours typical

ENVIRONMENTAL & RELIABILITY:

Operating Temperature Range: 0 °C to 55 °C

Operating Humidity: 5 % to 90 % non‑condensing

Enterprise‑grade reliability suitable for server/storage environments

Typical Power Draw: ~7 W with minimum airflow requirements

PHYSICAL:

Form Factor: PCI‑Express plug‑in adapter (low‑profile compatible)

Typical Dimensions: Approx. 2.6″ × 6.6″ card size (low profile)

Weight: Typical for a server HBA card

COMPATIBILITY:

Compatible with Dell PowerEdge servers and other systems that support PCI‑Express SAS/SATA HBAs

Supported Operating Systems: Microsoft Windows Server, Linux (SUSE, Red Hat), Solaris, VMware,
