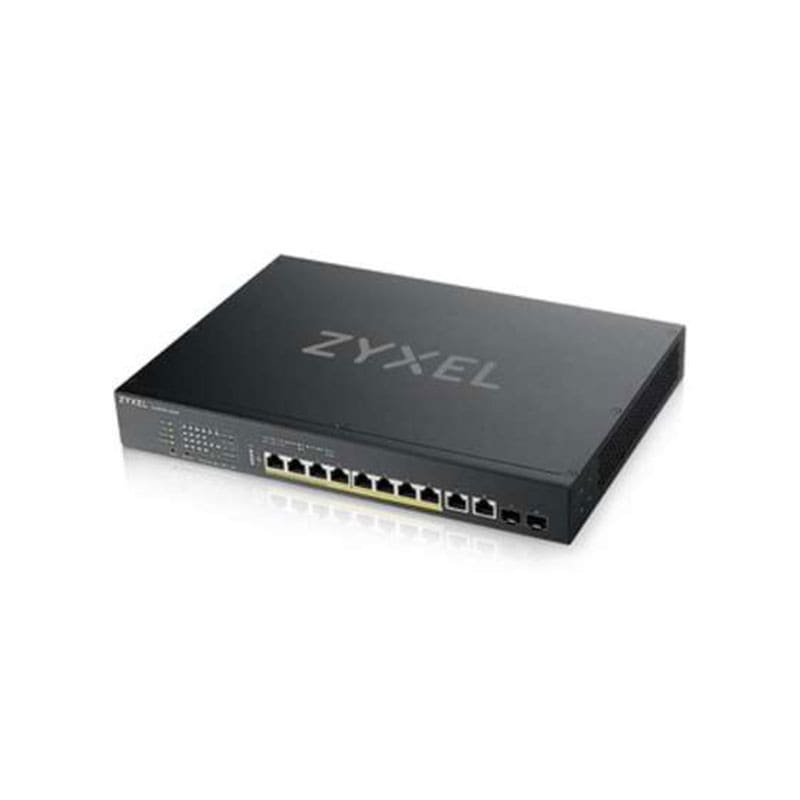

XS1930‑12HP Specifications
Zyxel 8‑port Multi‑Gigabit Smart Managed PoE++ Switch with 2 10 GbE & 2 SFP+ Uplink
Manufacturer: Zyxel
Manufacturer Model: XS1930‑12HP
Product Line: XS1930 Series
Product Series: Smart Managed PoE++ Multi‑Gigabit Switch
Product Type: Ethernet Switch (PoE Managed)
Product Name: Zyxel XS1930‑12HP Smart Managed PoE++ Switch
KEY FEATURES:
Total Port Count: 12
Multi‑Gigabit RJ‑45 Ports: 10 (100M/1G/2.5G/5G/10G)
SFP+ Uplink Ports: 2 (10 GbE)
PoE Ports: 8
Total PoE Power Budget: 375 W
PoE Standard: IEEE 802.3bt (PoE++)
Smart Management: Yes
NebulaFlex (Cloud/Standalone Management): Yes
Multi‑Gigabit LED speed indication: Yes
PERFORMANCE:
Switching Capacity: 240 Gbps
Forwarding Rate: ~178.5 Mpps
Packet Buffer: 2 MB
MAC Address Table: 16 K entries
L3 Forwarding Table: Max. 512 IPv4 / 512 IPv6 entries
Routing Table: 32 entries
Flash/RAM: 32 MB / 256 MB
ENVIRONMENTAL & RELIABILITY:
Operating Temperature: –20 °C to 50 °C
Storage Temperature: –40 °C to 70 °C
Humidity (Operating / Storage): 5 % to 95 % non‑condensing
MTBF: ~582,873 hours (approximate)
PHYSICAL:
Form Factor: Rack‑mountable switch
Power Input: 100 – 240 V AC, 50/60 Hz
Dimensions (W × D × H): 330 × 230 × 44 mm (~12.99″ × 9.06″ × 1.73″)
Weight: ~2.8 kg (~6.17 lbs)
Included Accessories: Power cord, Rack mounting kit
