XCM8903SK-10000S Specifications

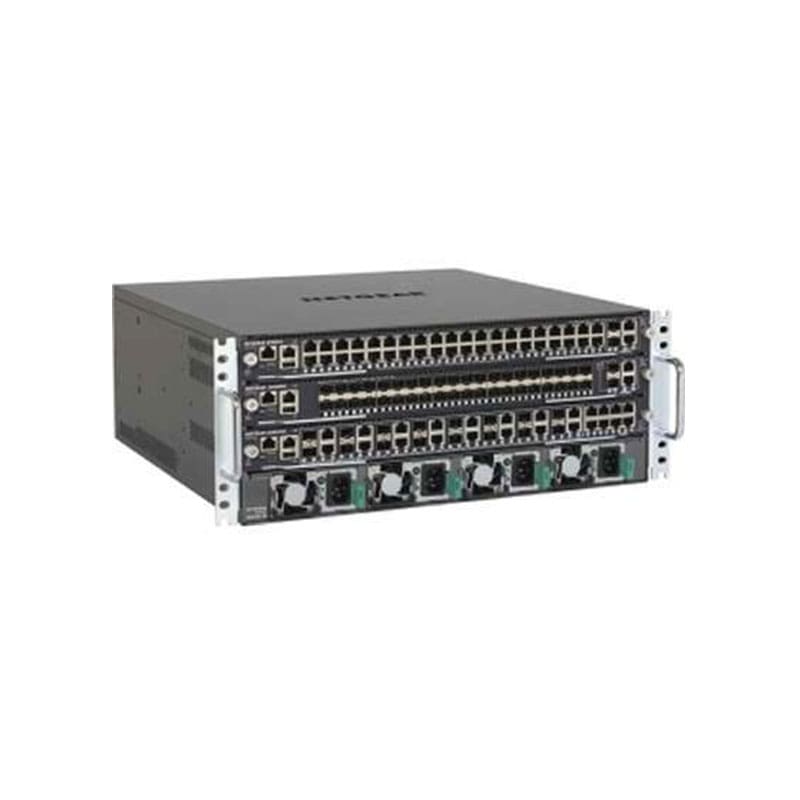

NETGEAR XCM8903SK-10000S
Manufacturer: NETGEAR
Manufacturer Model: XCM8903SK-10000S
Product Line: ProSafe M6100 Series
Product Series: M6100-44G3-PoE+ Starter Kit
Product Type: Modular Chassis Switch Starter Kit
Product Name: NETGEAR M6100-44G3-PoE+ Chassis Starter Kit
KEY FEATURES:
Modular chassis with 3 open I/O (blade) slots
Supports up to 144 RJ-45 10/100/1000 ports or combinations of 10G/1G modules
Built-in distributed fabric, passive backplane, redundant fabric and management for high availability
L2/L3/L4 rich feature set included (static & dynamic routing, IPv4/IPv6, ACLs, etc.) with no additional license required
PERFORMANCE:
Total switching/routing capacity: up to approx. 1.4 Tbps for the series
Example throughput: up to ~1,071 Mpps intra-blade
ENVIRONMENTAL & RELIABILITY:
Operating Temperature: 0 °C to 50 °C
Warranty: Limited Lifetime Hardware Warranty (when purchased from authorized channels)
PHYSICAL:
Form Factor: 4‑U chassis
Dimensions: Height ~6.93″ (175.9 mm), Width ~17″ (432 mm), Depth ~17.4″ (441.6 mm)
