WS Z390 PRO ASUS Intel Z390 HDMI SATA 6Gb/s USB 3.1

WS Z390 PRO Specifications

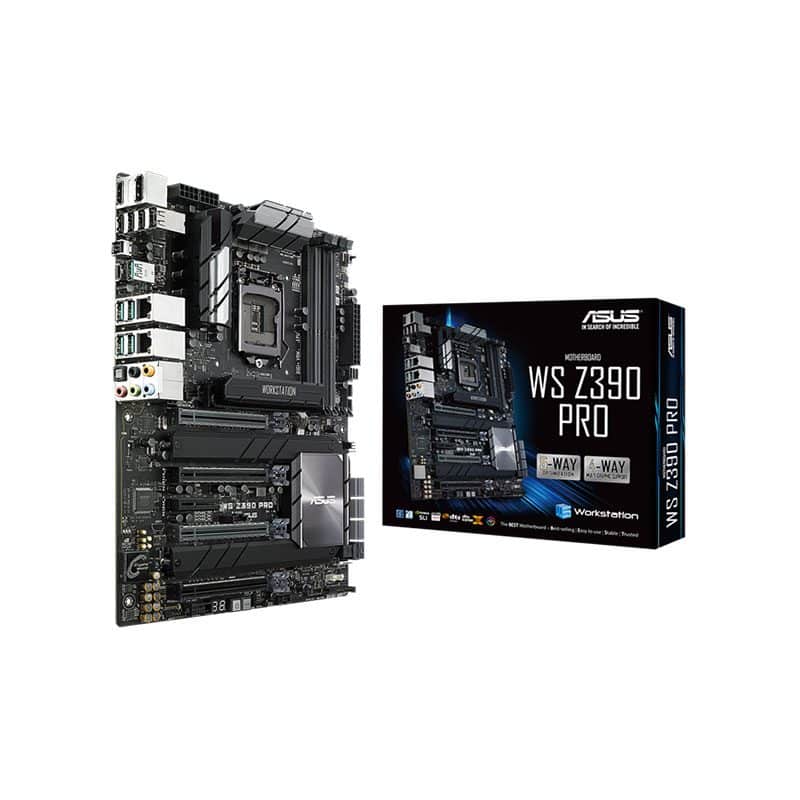

ASUS WS Z390 PRO Workstation Motherboard

Manufacturer: ASUS
Manufacturer Model: WS Z390 PRO
Product Line: ASUS Workstation
Product Series: Z390 Series
Product Type: ATX Motherboard
Product Name: ASUS WS Z390 PRO

KEY FEATURES:
CPU Socket: LGA 1151 (8th/9th Gen Intel Core, Pentium, Celeron)
Memory Capacity: 4 × DDR4 DIMM slots, up to 128 GB, 4266 MHz (OC)
Storage Interface: 6 × SATA III, 2 × M.2, 2 × U.2, supports Intel Optane
Expansion Slots: 4 × PCIe 3.0 ×16, 1 × PCIe 3.0 ×4, quad-GPU support (SLI / CrossFire)
Networking: Dual Intel Gigabit LAN (I210-AT + I219-LM)
Audio: Realtek ALC S1220A, 8-channel
Rear I/O Ports: HDMI 2.0, DisplayPort 1.2, 5 × USB 3.1 Gen2, 1 × USB-C Gen2, 4 × USB 2.0, Audio + S/PDIF, BIOS Flashback
Power: 24-pin ATX, 8-pin CPU, 6-pin auxiliary
Form Factor: ATX (30.5 × 24.4 cm)
Special Features: AI Overclocking, 5-Way Optimization, OptiMem II

PERFORMANCE:
Maximum Memory Speed: Up to 4266 MHz (OC)
Maximum GPU Support: 4-way SLI / CrossFire
SATA Data Transfer Rate: Up to 6 Gb/s
PCIe Data Transfer Rate: PCIe 3.0 per slot
CPU Support: 8th/9th Gen Intel Core / Pentium / Celeron

ENVIRONMENTAL & RELIABILITY:
Operating Temperature Range: Not explicitly specified
Storage Temperature Range: Not explicitly specified
Operating Humidity: Not explicitly specified
Shock Resistance: Not explicitly specified
Vibration Resistance: Not explicitly specified
Reliability Features: Designed for workstation/pro use, enterprise-class power delivery, BIOS Flashback

PHYSICAL:
Dimensions (W × D × H): 30.5 × 24.4 cm (ATX)
Weight: Not explicitly specified
Color: Black with silver accents
