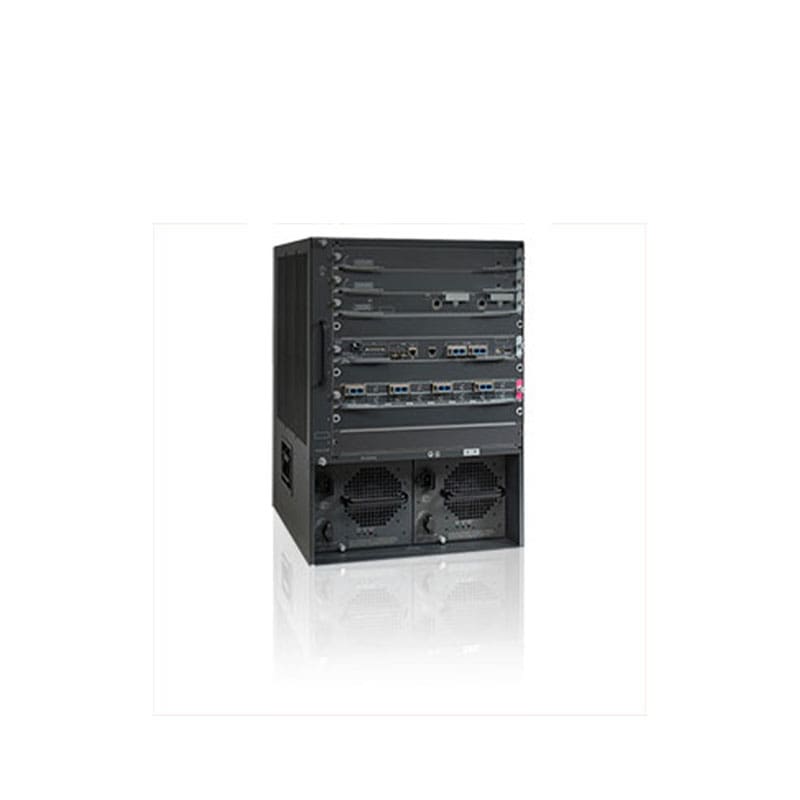

WS-C6509-EACEK9 Cisco Switch at discount

WS-C6509-EACEK9 Specifications

Cisco Catalyst 6509-E Chassis with Enhanced Advanced Services (EACE)

Manufacturer: Cisco
Manufacturer Model: WS-C6509-EACEK9
Product Line: Cisco Catalyst 6500 Series
Product Series: 6509-E
Product Type: Modular Switch Chassis with Enhanced Advanced Services (EACE)
Product Name: Cisco Catalyst 6509-E with Enhanced Advanced Services

KEY FEATURES:
Slot Capacity: 9 line-card slots
Supervisor Engine: Supports multiple supervisor engines (typically SUP2T or SUP720)
Advanced Services: Enhanced features for security, firewall, VPN, and MPLS
Redundant Power Supply Support: Yes, dual AC or DC power supplies
Modular Design: Supports various line cards (Ethernet, 10GE, 40GE, etc.)
Form Factor: 19-inch Rack-mountable, 13U height
Features Supported: Layer 2 and Layer 3 switching, QoS, ACLs, VLANs, firewall, VPN, MPLS

PERFORMANCE:
Switching Capacity: ~720 Gbps (depending on the supervisor engine)
Forwarding Rate: ~400 Mpps (depending on the supervisor engine)
VLANs Supported: Up to 4,096 VLANs
Layer Support: Layer 2, Layer 3, Advanced Services (Firewall, VPN, MPLS)
MAC Address Table Size: 32,000 entries
Latency: Not explicitly specified

ENVIRONMENTAL & RELIABILITY:
Operating Temperature Range: 0°C to 40°C
Storage Temperature Range: –20°C to 65°C
Operating Humidity: 10% to 90% non-condensing
Shock Resistance: Not explicitly specified
Vibration Resistance: Not explicitly specified
MTBF: Not explicitly specified

PHYSICAL:
Dimensions (W x D x H): 17.5 in × 22 in × 17.5 in (445 mm × 560 mm × 445 mm)
Weight: ~33.8 kg (74.5 lbs)
Color: Black
