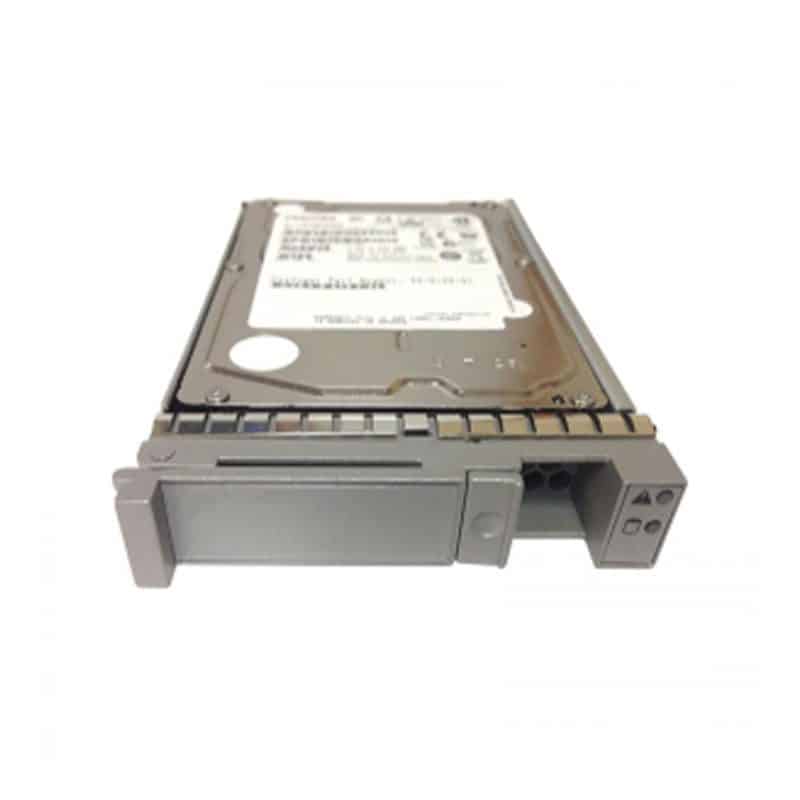

UCS-SD480GBKS4-EV Cisco Enterprise 480GB SATA 6Gbps 2.5-inch

UCS-SD480GBKS4-EV Specifications

Cisco 480 GB 2.5-inch Enterprise Value SATA Solid State Drive

Manufacturer: Cisco
Manufacturer Model: UCS-SD480GBKS4-EV
Product Line: Cisco Enterprise Value SSD
Product Series: 2.5-inch SFF SATA 6 Gb/s
Product Type: Internal Solid State Drive (Hot-Swap)
Product Name: Cisco 480 GB Enterprise Value SATA SSD

KEY FEATURES:
Storage Capacity: 480 GB
Interface Type: SATA III (6 Gb/s)
Form Factor: 2.5-inch (SFF)
Endurance Class: Enterprise Value (read-intensive, ~1 DWPD)
Hot-Swap Support: Yes

PERFORMANCE:
Maximum Sequential Read Speed: Up to ~550 MB/s
Maximum Sequential Write Speed: Up to ~500 MB/s
Interface Bandwidth: 6 Gb/s SATA
Random Read IOPS: ~90,000
Random Write IOPS: ~35,000

ENVIRONMENTAL & RELIABILITY:
Designed for enterprise server and storage systems with 24×7 operation
Reliability Rating: Enterprise-class SSD
MTBF: 2 million hours (approximate)
Endurance: ~0.8–1 Drive Write Per Day (DWPD)

PHYSICAL:
Form Factor: 2.5-inch Small Form Factor (SFF)
Interface Connector: SATA data + power
Typical Dimensions: 100 mm × 70 mm × 7 mm
Weight: ~0.1 kg
