UCS-CPU-E52699AE Cisco Intel Xeon E5 2699A V4 22 Core 2.40

UCS-CPU-E52699AE Specifications

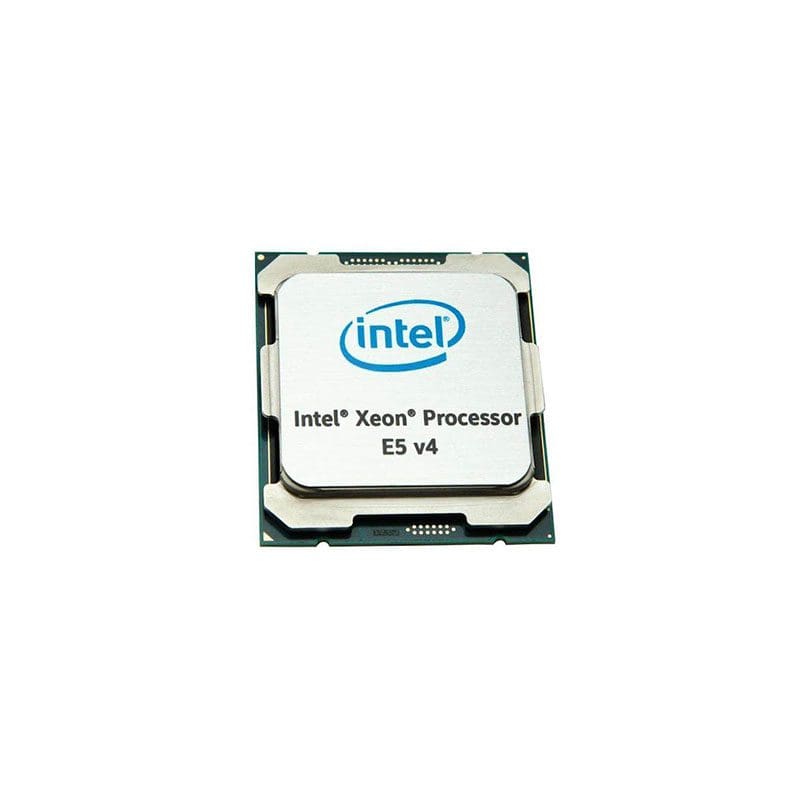

Cisco UCS Intel Xeon E5-2699A v4 Processor

Manufacturer: Cisco
Manufacturer Model: UCS-CPU-E52699AE
Product Line: Cisco UCS CPU
Product Series: Intel Xeon E5-2600 v4 (Broadwell)
Product Type: Server Processor (CPU)
Product Name: Cisco UCS Intel Xeon E5-2699A v4 Processor

KEY FEATURES:
Processor Model: Intel Xeon E5-2699A v4
Number of Cores: 22 Cores
Number of Threads: 44 Threads
Base Clock Speed: 2.40 GHz
Max Turbo Frequency: Up to 3.60 GHz
Cache: 55 MB L3 Smart Cache
Socket Type: LGA 2011-v3
Manufacturing Process: 14 nm
Instruction Set: 64-bit

PERFORMANCE:
Ultra–high core count optimized for virtualization, cloud, and HPC workloads
Intel Turbo Boost Technology 2.0 supported
Hyper-Threading Technology supported
Intel Virtualization Technology (VT-x, VT-d) supported
Advanced Vector Extensions: AVX2
Security Features: AES-NI

MEMORY & I/O:
Memory Type: DDR4
Memory Channels: Quad-channel
Maximum Memory Speed: Up to 2400 MT/s
Maximum Memory Capacity: Platform dependent
PCI Express: PCIe 3.0
Maximum PCIe Lanes: 40

ENVIRONMENTAL & RELIABILITY:
Designed for enterprise-class, 24×7 data center operation
Qualified for Cisco UCS blade and rack server platforms

PHYSICAL:
Form Factor: Standard server CPU package
Cooling: Requires Cisco UCS–approved heatsink (not included)
Thermal Design Power (TDP): 145 W
