UCS-CPU-E5-4620 Cisco 2.20GHz 7.20GT/s QPI 16MB L3

UCS-CPU-E5-4620 Specifications

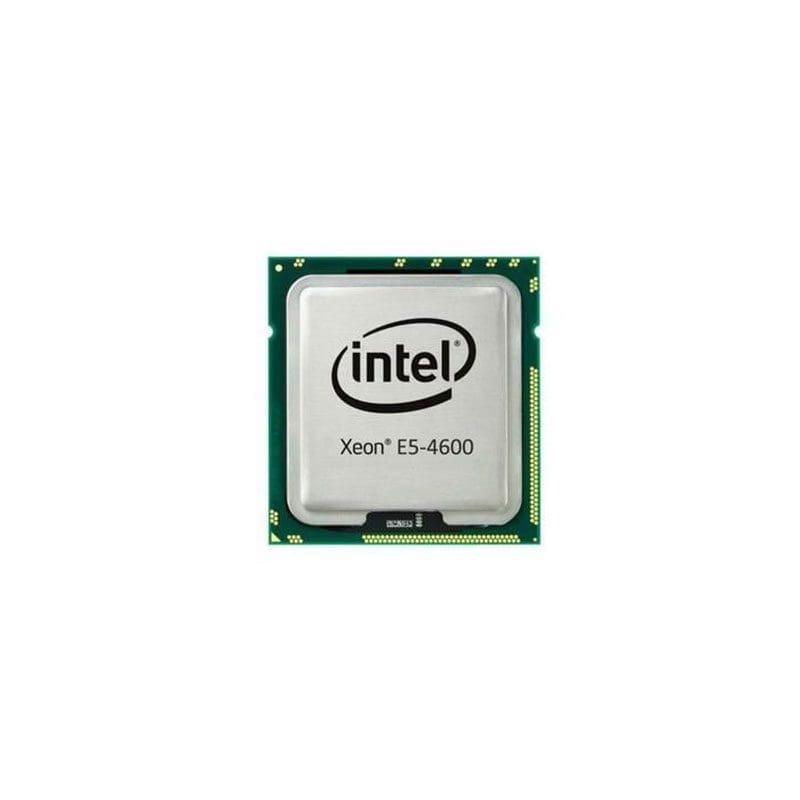

Cisco Intel Xeon E5-4620 Processor for UCS Servers

Manufacturer: Cisco
Manufacturer Model: UCS-CPU-E5-4620
Product Line: Cisco UCS Server Processors
Product Series: Intel Xeon E5 v2/v3
Product Type: Server CPU
Product Name: Cisco UCS Intel Xeon E5-4620 CPU

KEY FEATURES:
Processor Type: Intel Xeon E5-4620
Cores / Threads: 8 / 16
Base Clock Speed: 2.2 GHz
Max Turbo Frequency: 2.8 GHz
Cache: 20 MB L3 Cache
Thermal Design Power (TDP): 95 W
Socket Type: LGA2011

PERFORMANCE:
Memory Support: DDR3 ECC Registered / LRDIMM
Max Memory Bandwidth: ~51.2 GB/s
Supported Technologies: Intel Hyper-Threading, Intel Turbo Boost, Intel Virtualization (VT-x, VT-d), Intel AES-NI

ENVIRONMENTAL & RELIABILITY:
Designed for enterprise UCS server environments
Operating Temperature: 0°C – 35°C
MTBF: ~1.5 million hours (approximate)
Reliability Rating: Enterprise-class, 24×7 operation

PHYSICAL:
Form Factor: CPU (processor) for server motherboard
Typical Dimensions: Standard LGA2011 package
Weight: ~0.25 kg (~0.55 lbs)
