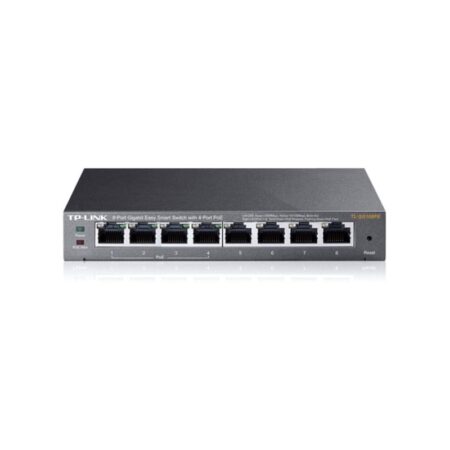

TL‑SG108PE Specifications
TP‑Link 8‑Port Gigabit Easy Smart Switch with 4‑Port PoE+
Manufacturer: TP‑Link
Manufacturer Model: TL‑SG108PE
Product Line: TP‑Link Easy Smart Switches
Product Series: TL‑SG108PE Series
Product Type: Easy Smart Gigabit Ethernet Switch with PoE+
Product Name: TP‑Link TL‑SG108PE
KEY FEATURES:
Ports: 8 × 10/100/1000 Mbps RJ‑45 (Auto‑Negotiation / Auto MDI/MDIX)
PoE Support: 4 ports (Ports 1‑4) PoE+ (IEEE 802.3af/at) with up to 30 W per port
Total PoE Power Budget: 64 W
Fanless Design, Metal Casing, Desktop or Wall‑mount
PERFORMANCE:
Switching Capacity: 16 Gbps
Packet Forwarding Rate: ~11.9 Mpps
MAC Address Table: 4K entries
Packet Buffer Memory: 1.5 Mb
Jumbo Frame Support: 16 KB
ENVIRONMENTAL & RELIABILITY:
Operating Temperature: 0 °C to 40 °C
Storage Temperature: –40 °C to 70 °C
Operating Humidity: 10% – 90% non‑condensing
Certifications: FCC, CE, RoHS
PHYSICAL:
Form Factor: Compact desktop / wall‑mount enclosure
Dimensions: 158 × 101 × 25 mm (6.2″ × 4.0″ × 1.0″)
Power Supply: External Adapter (Output: 53.5 V DC / 1.31 A)
Max Power Consumption: ~5.41 W (no PD connected) / up to ~74.27 W (with full 64 W PoE load)
