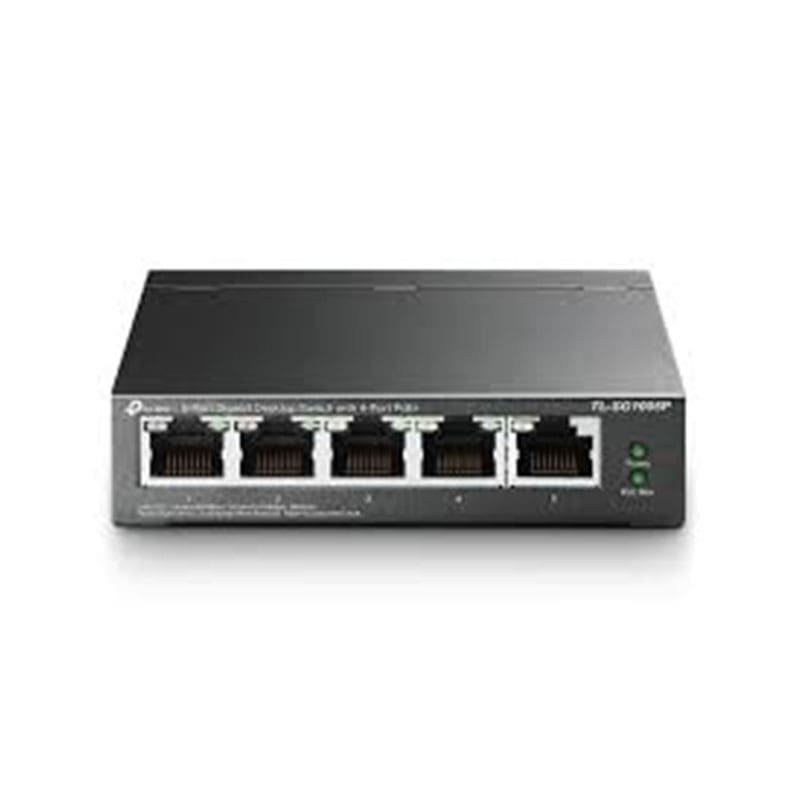

TL‑SG1005P Specifications
TP‑Link 5‑Port Gigabit Desktop Switch with 4‑Port PoE+
Manufacturer: TP‑Link
Manufacturer Model: TL‑SG1005P
Product Line: TP‑Link PoE+ Switch
Product Series: 5‑Port Gigabit Unmanaged with 4 PoE+
Product Type: Unmanaged Network Switch (PoE+)
Product Name: TL‑SG1005P 5‑Port Gigabit Desktop Switch with 4 PoE+ Ports
KEY FEATURES:
Ports: 5 × 10/100/1000 Mbps RJ45 ports
PoE+ Ports: Ports 1–4 support IEEE 802.3af/at PoE+
Total PoE Budget: ~65 W (supports up to ~30 W per PoE+ port)
QoS: 802.1p/DSCP for latency‑sensitive traffic
Design: Plug‑and‑play (no configuration required), fanless, desktop/ wall‑mountable
PERFORMANCE:
Switching Capacity: ~10 Gbps
Packet Forwarding Rate: ~7.44 Mpps
MAC Address Table Size: ~2K entries
Jumbo Frame Support: Up to ~16 KB
ENVIRONMENTAL & RELIABILITY:
Operating Temperature: 0 °C to 40 °C
Storage Temperature: –40 °C to 70 °C
Operating Humidity: 10% – 90% non‑condensing
Overload Protection: Priority function to cut lowest‑priority PoE port if total PoE load exceeds budget
PHYSICAL:
Form Factor: Compact Desktop / Wall‑mountable
Dimensions: Approx. 99 mm × 98 mm × 25 mm
Weight: Not explicitly listed
