TL‑SF1009P Specifications

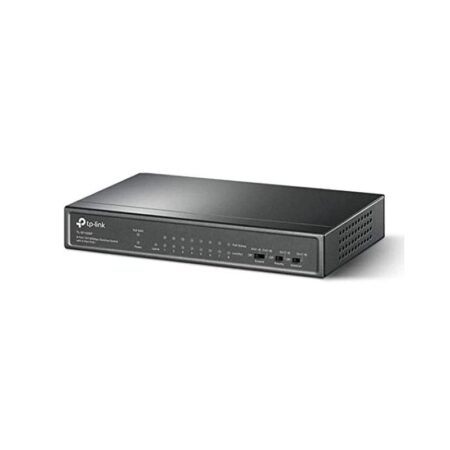

TP‑Link 9‑Port 10/100 Mbps Desktop Switch with 8‑Port PoE+
Manufacturer: TP‑Link
Manufacturer Model: TL‑SF1009P
Product Line: TP‑Link PoE Switches
Product Series: TL‑SF1009P Series
Product Type: Unmanaged Fast‑Ethernet PoE Switch
Product Name: TP‑Link TL‑SF1009P
KEY FEATURES:
Ports: 9 × 10/100 Mbps RJ‑45 (8 for PoE+)
PoE Support: IEEE 802.3af/at compliant on 8 ports
Max PoE: Up to 30 W per PoE port
Total PoE Budget: 65 W
Extend Mode: Supports data & power up to 250 m (at reduced speed)
Priority Mode: Ports 1‑2 get priority for critical applications
Isolation Mode: One‑click traffic separation for ports 1‑8
Fanless design, desktop or wall‑mountable
PERFORMANCE:
Switching Capacity: ~1.8 Gbps
Packet Forwarding Rate: ~1.339 Mpps
MAC Address Table: ~2K entries
Jumbo Frame Support: ~2 KB
ENVIRONMENTAL & RELIABILITY:
Operating Temperature: 0 °C to 40 °C
Storage Temperature: −40 °C to 70 °C
Operating Humidity: 10% – 90% non‑condensing
Certifications: FCC, CE, RoHS
PHYSICAL:
Form Factor: Desktop enclosure
Dimensions: 171 × 98 × 27 mm (6.7″ × 3.9″ × 1.1″)
Power Supply: External 53.5 V DC / 1.31 A adapter
Power Consumption: ~3.6 W (no PD) / up to ~77 W (with full PoE load)
