SSG-520M-SH-N-TAA Juniper Secure Services Gateway SSG 520M

SSG‑520M‑SH‑N‑TAA Specifications

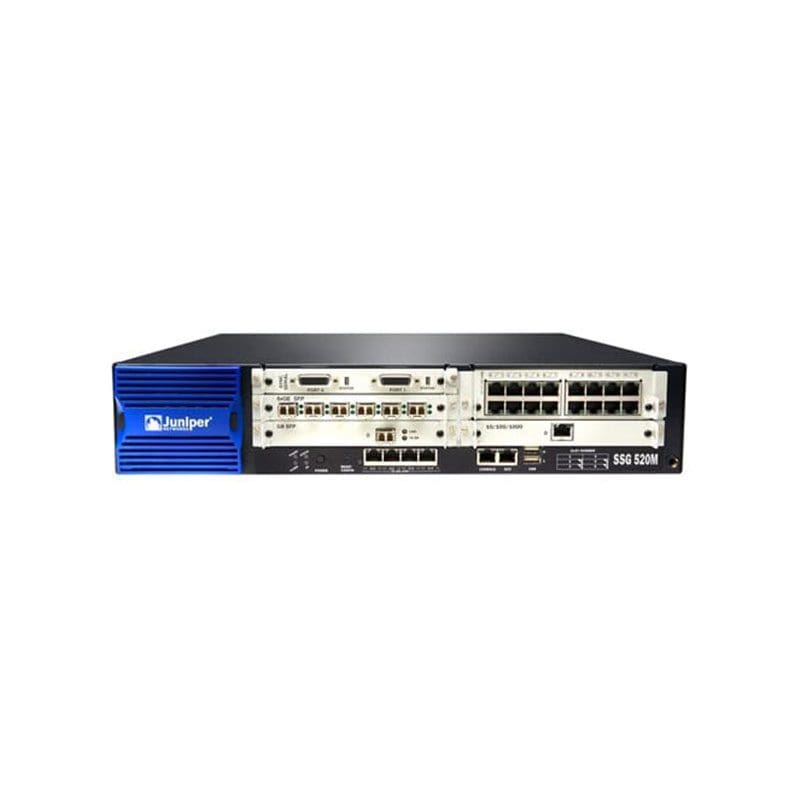

Juniper Networks SSG‑520M Secure Services Gateway

Manufacturer: Juniper Networks
Manufacturer Model: SSG‑520M‑SH‑N‑TAA
Product Line: SSG 500 Series Secure Services Gateway
Product Series: SSG‑520M
Product Type: Network Security / Firewall & VPN Appliance
Product Name: Juniper Networks SSG‑520M Secure Services Gateway

KEY FEATURES:
Firewall Throughput: ~650 Mbps (large packets)
VPN Throughput (3DES): ~300 Mbps
Concurrent VPN Tunnels: Up to ~500
Stateful Firewall Protection: Yes
Unified Threat Management (UTM): Firewall, IPS, Antivirus, Web Filtering, Anti-Spam
Routing Protocols Supported: OSPF, BGP, RIP, Static
VLAN & QoS Support: Yes
Gigabit Ethernet Ports: 4+
Management Interfaces: CLI, WebUI, HTTPS, SNMP, Telnet
Compliance: TAA (Trade Agreements Act), NEBS

PERFORMANCE:
Maximum Concurrent Sessions: Up to ~64,000+
VPN Tunnels: Up to ~500 simultaneous IPSec VPN connections
Security Services: Stateful inspection, UTM, DoS/DDoS protection

ENVIRONMENTAL & RELIABILITY:
Operating Temperature: 0–50 °C
Designed for enterprise/branch office network security
Reliability Rating: Enterprise-class, 24×7 operation

PHYSICAL:
Form Factor: 2U rack-mount chassis
Memory: 1 GB DRAM
Power Supply: Internal AC (~350 W)
Typical Dimensions: Standard 2U rackmount (approx. 88 mm × 440 mm × 350 mm)
Weight: ~8–10 kg
