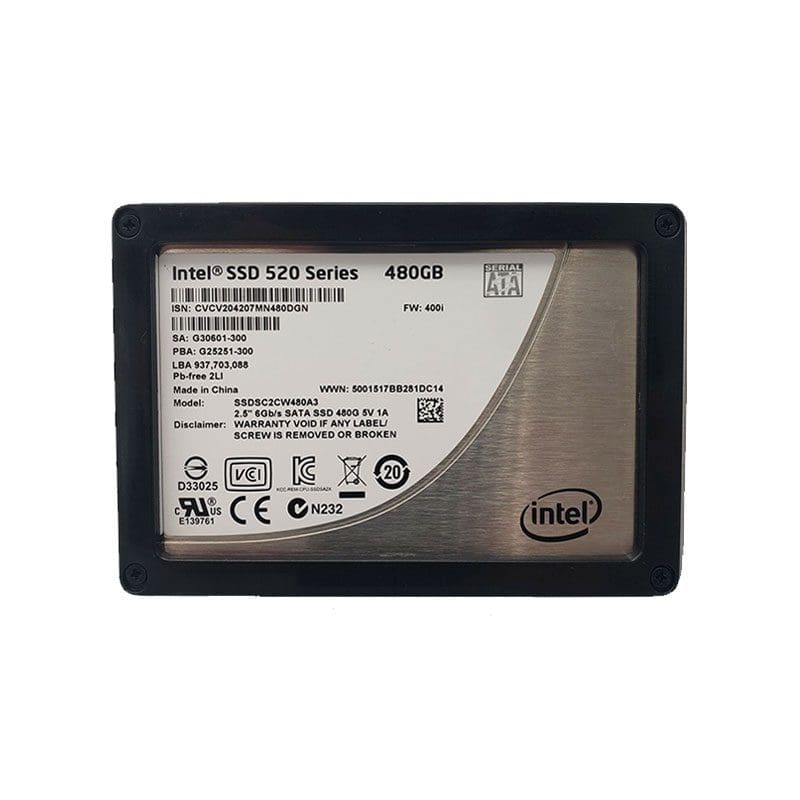

SSDSC2CW480A3 Intel 520 Series 480GB MLC SATA SSD

SSDSC2CW480A3 Technical Specifications

Intel 520 Series 480GB MLC SATA 6Gbps (AES-128) 2.5-inch Internal Solid State Drive (SSD)

Brand / Model: Intel SSD 520 Series – 480 GB (SSDSC2CW480A3)

SSD form factor: 2.5″ (7 mm height)
SSD capacity: 480 GB
Interface: SATA III (6 Gb/s)
Memory type: MLC NAND (25 nm)
NVMe: No
Component for: Client / Desktop / Laptop
Hardware encryption: Yes (AES 128-bit)
Security algorithms: 256-bit AES
Random read (100% span): 50,000 IOPS
Random write (100% span): 42,000 IOPS
Sequential read (max): 550 MB/s
Sequential write (max): 520 MB/s
Read latency: 80 µs
Write latency: 85 µs
End-to-end data protection: Yes
Enhanced Power Loss Data Protection technology: No
SSD temperature monitoring: No
Uncorrectable Bit Error Rate (UBER): < 1 per 10¹⁶ bits read
Mean time between failures (MTBF): 1,200,000 hours
SSD ARK ID: 66251
Harmonized system (HS) code: 84717070
Export Control Classification Number (ECCN): 5A992C
Commodity Classification Automated Tracking System (CCATS): G162706L1
Power consumption (active): 850 mW (MobileMark 2007 Workload)
Power consumption (idle): 600 mW (DIPM)
Operating temperature range: 0 °C to 70 °C
Shock tolerance (operating): 1,500 G @ 0.5 ms
Shock tolerance (non-operating): 1,500 G @ 0.5 ms
Vibration tolerance (operating): 2.17 GRMS (5–700 Hz)
Vibration tolerance (non-operating): 3.13 GRMS (5–800 Hz)
Weight: Up to 2.75 oz (78 g)
