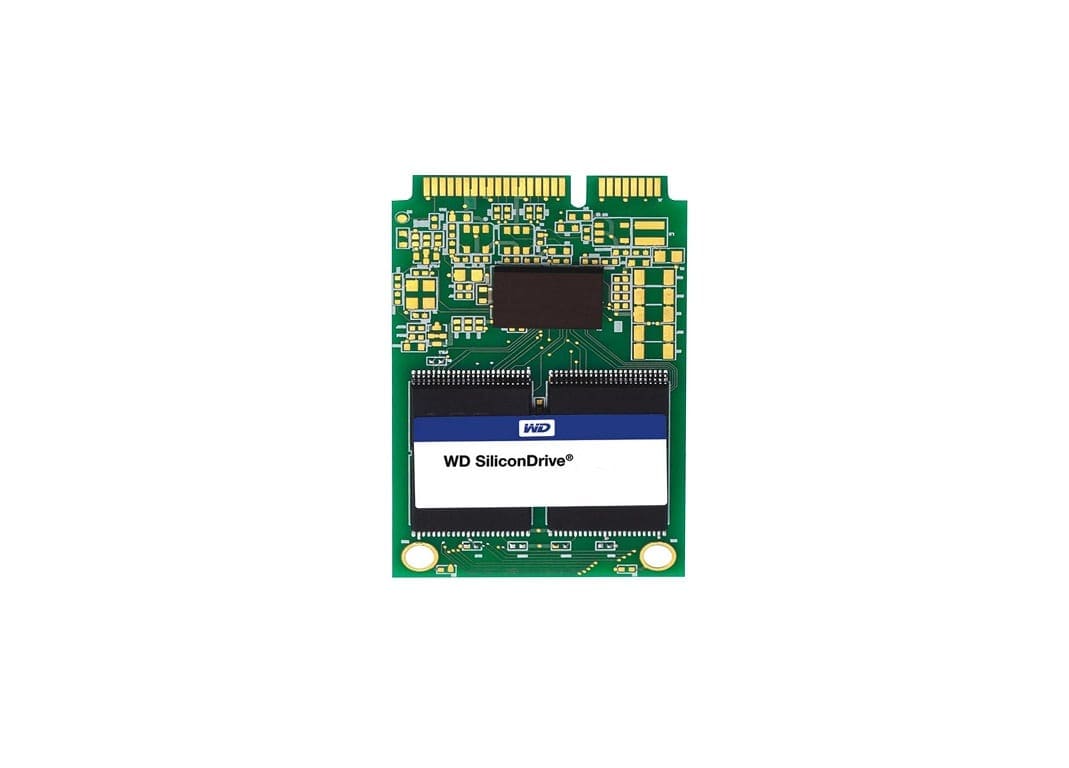

SSD-M0032SC-7150 Western Digital 32GB 3Gbps mSATA Drive (SSD)

SSD-M0032SC-7150 Specifications

Western Digital 32 GB 2.5″ (mSATA) SATA 3 Gb/s SLC SFF SSD

Manufacturer: Western Digital
Manufacturer Model: SSD-M0032SC-7150
Product Line: SiliconDrive A100
Product Series: Industrial / Embedded Grade
Product Type: Internal Solid State Drive
Product Name: Western Digital 32 GB 2.5″ (mSATA) SATA 3 Gb/s SLC SFF SSD

KEY FEATURES:
Storage Capacity: 32 GB
Interface Type: Serial ATA (SATA) 3 Gb/s
Form Factor: mSATA (2.5‑inch equivalent SFF)
Drive Type: Internal, Hot‑Swappable
Flash Type: Single‑Level Cell (SLC)
Data Transfer Rate: Up to ~120 MB/s read
Compatibility: Designed for embedded/industrial systems requiring mSATA interface
Features Supported: Enterprise‑grade reliability, SLC endurance

PERFORMANCE:
Maximum Data Transfer Rate: Up to ~120 MB/s (read)
Random Read IOPS: Not explicitly specified
Random Write IOPS: Not explicitly specified
Sequential Read Speed: Approximately up to ~120 MB/s
Sequential Write Speed: Approximately up to ~40‑50 MB/s

ENVIRONMENTAL & RELIABILITY:
Operating Temperature Range: 0 °C to 70 °C
Storage Temperature Range: ‑40 °C to 85 °C
Operating Humidity: Not explicitly specified
Shock Resistance: 1000 G, half‑sine 0.5 ms
Vibration Resistance: 16.3 gRMS (MIL‑STD‑810F)

PHYSICAL:
Dimensions (W × D × H): Max approx. 30 mm × 50.95 mm × 4.85 mm (mSATA form)
Weight: Not explicitly specified
Color: Not explicitly specified
