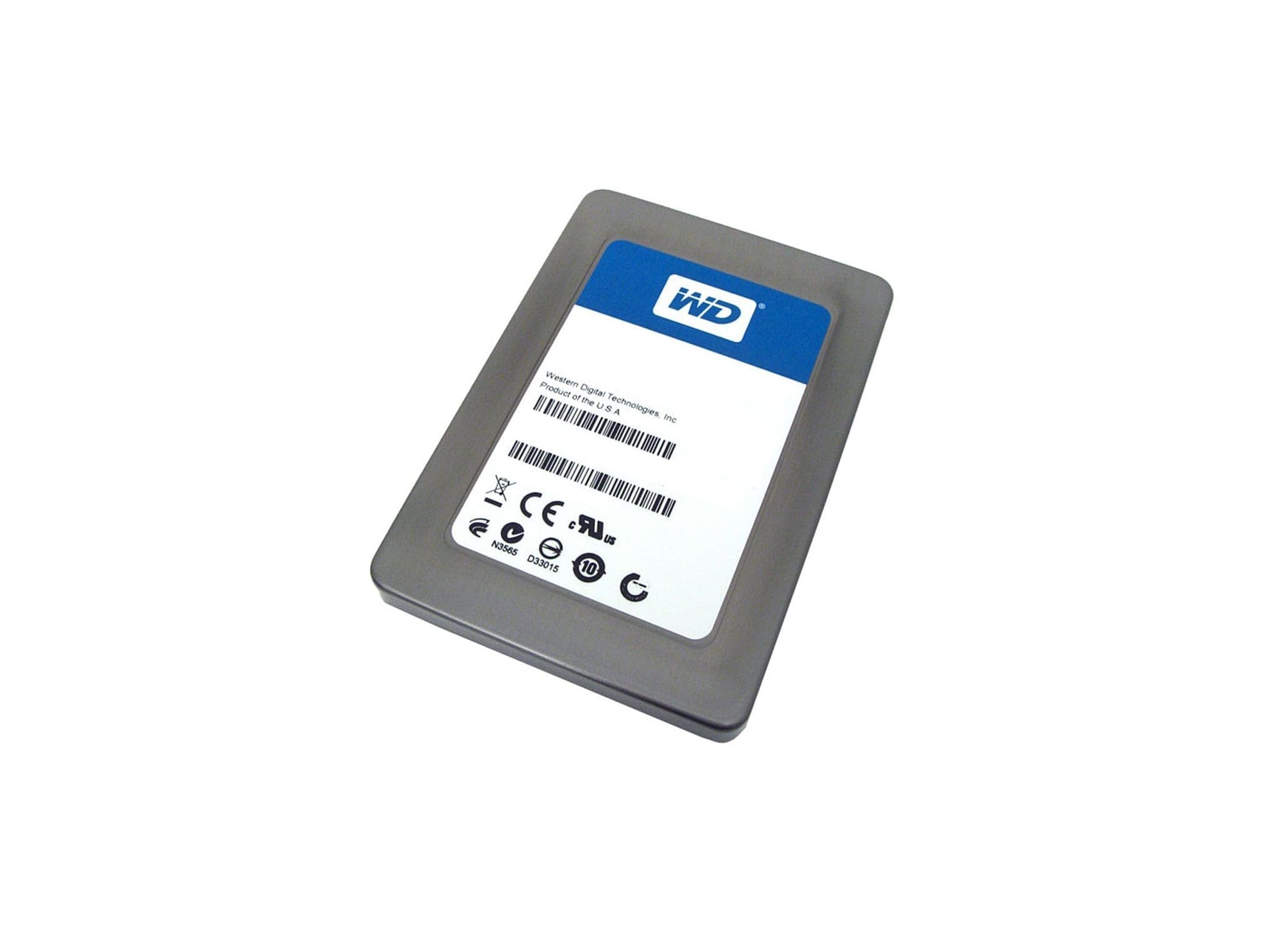

SSC-D0256SC-2100-B2 Western Digital 256GB SATA 2.5-inch (SSD)

SSC-D0256SC-2100-B2 Specifications

Western Digital 256GB 2.5″ SATA 3G MLC SSD

Manufacturer: Western Digital
Manufacturer Model: SSC-D0256SC-2100-B2
Product Line: Western Digital SiliconEdge Blue
Product Type: Internal Solid State Drive
Product Name: Western Digital 256GB 2.5″ SATA 3Gb/s MLC SSD

KEY FEATURES:
Storage Capacity: 256 GB
Interface Type: Serial ATA (SATA) 3 Gb/s
Form Factor: 2.5‑inch
Drive Type: Internal SSD (supports hot‑swap)
Flash Type: Multi‑Level Cell (MLC)
Data Transfer Rate: Up to ~250 MB/s read, ~170 MB/s write
Compatibility: Standard SATA 3 Gb/s interface for desktops/laptops/notebooks
Features Supported: Native command queuing (NCQ), TRIM support, enterprise‑grade reliability

PERFORMANCE:
Maximum Data Transfer Rate: Up to ~250 MB/s read, ~170 MB/s write
Random Read IOPS: Up to ~5,000 IOPS
Random Write IOPS: Up to ~5,000 IOPS
Sequential Read Speed: Approximately 250 MB/s
Sequential Write Speed: Approximately 170 MB/s

ENVIRONMENTAL & RELIABILITY:
Operating Temperature Range: 0 °C to 70 °C
Storage Temperature Range: ‑55 °C to 125 °C
Operating Humidity: 8% to 95% non‑condensing
Shock Resistance: 1,000 G, half‑sine 0.5 ms duration
Vibration Resistance: 16.3 g RMS (MIL‑STD‑810F Method 514.5)
Mean Time Between Failures (MTBF): ~1,400,000 hours

PHYSICAL:
Dimensions (W x D x H): approx. 69.85 mm × 100.3 mm × 9.5 mm
Weight: ~0.08 kg
Color: Grey casing
