SRX345-DUAL-AC Juniper Networks SRX345 Services Gateway security

SRX345-DUAL-AC Specifications

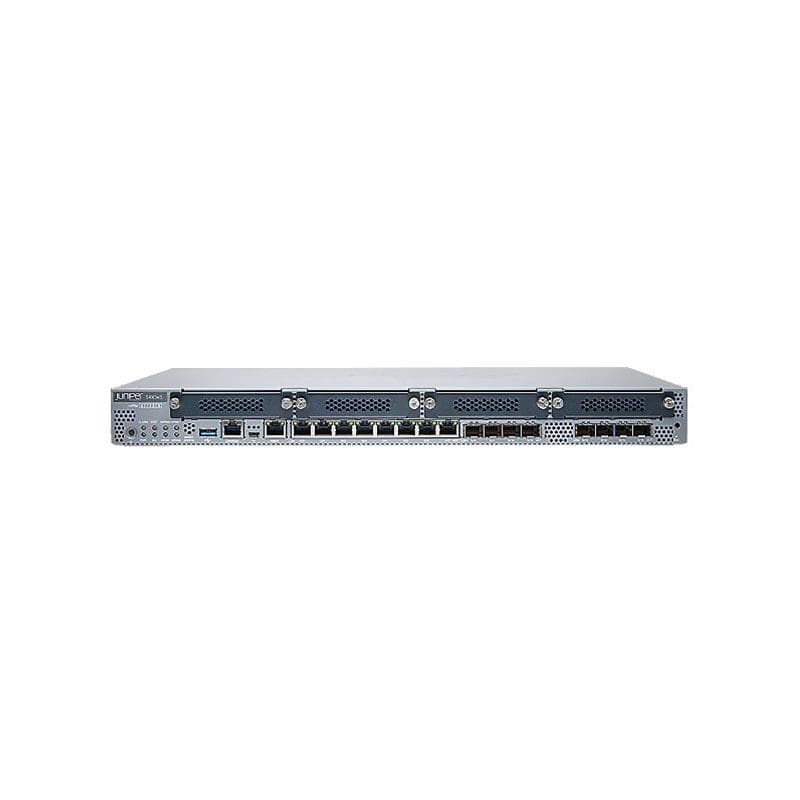

Juniper SRX345 Enterprise Services Gateway Dual AC-Powered

Manufacturer: Juniper Networks
Manufacturer Model: SRX345-DUAL-AC
Product Line: Juniper SRX Series Services Gateways
Product Series: SRX300 Mid-Range Firewall Series
Product Type: Next-Generation Firewall / Services Gateway
Product Name: Juniper SRX345 Dual AC-Powered Security Appliance

KEY FEATURES:
Firewall Type: Enterprise Next-Generation Firewall (NGFW)
Operating System: Junos OS
Deployment: Branch Office, SMB, Enterprise Edge
Power Type: Dual AC-Powered
High Availability: Yes (Active/Active, Active/Passive)
Redundant Components: Dual AC power supplies, hot-swappable fan trays
Chassis Architecture: Base System / Dual AC
Rack Mount Support: Yes

PERFORMANCE:
Firewall Throughput (IMIX): Up to ~3 Gbps
Maximum Firewall Throughput: Up to ~6 Gbps
IPS Throughput: Up to ~2–3 Gbps
VPN (IPsec) Throughput: Up to ~1.5 Gbps
Concurrent Sessions: Up to ~1 million
New Sessions per Second: Up to ~50,000

INTERFACES & CONNECTIVITY:
Network Ports: 8 × 1GbE / 10GbE SFP+ ports
Management Interface: 1 × 1GbE dedicated management port
HA Ports: 2 × HA ports
Console Port: RJ-45
USB Ports: USB support

MEMORY & STORAGE:
System Memory: 16 GB DDR4
Storage: Internal SSD (capacity dependent on configuration)

ENVIRONMENTAL & RELIABILITY:
Designed for enterprise-grade 24×7 operation
High availability and fault-tolerant architecture
Enterprise-class reliability for security-critical deployments

PHYSICAL:
Form Factor: 1U Rack-Mountable Appliance
Chassis Type: Metal enterprise security chassis
Typical Dimensions: Standard 19-inch rack width (1U height)
Weight: ~10–11 kg
