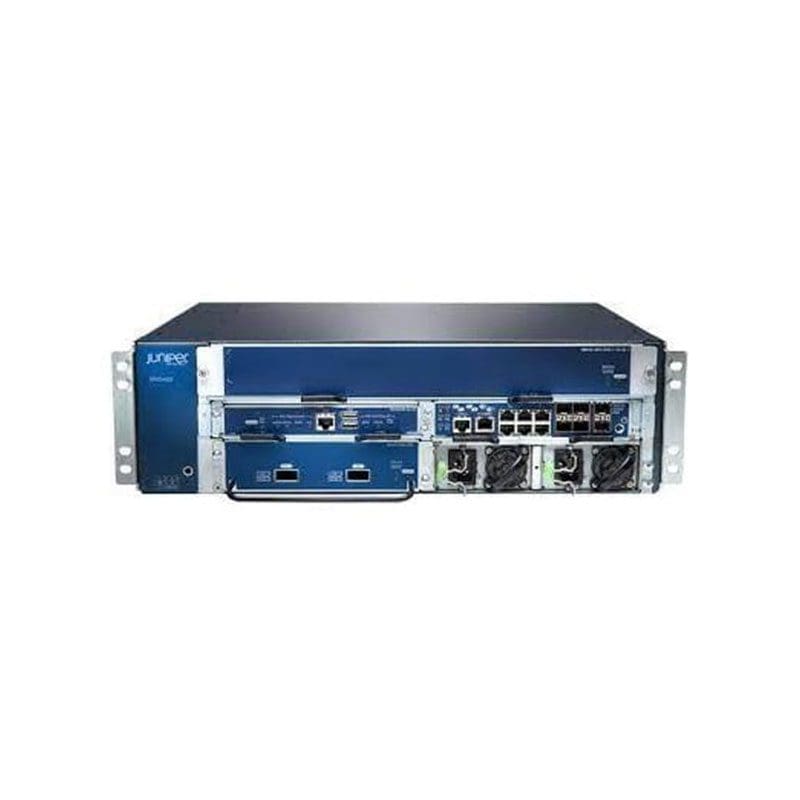

SRX1400BASE-XGE-AC Juniper Networks SRX1400 Services Gateway

SRX1400BASE‑XGE‑AC Specifications

Juniper SRX1400 Services Gateway with 10 GbE Base System and AC Power

Manufacturer: Juniper Networks
Manufacturer Model: SRX1400BASE‑XGE‑AC
Product Line: SRX Series Services Gateway
Product Series: SRX1400
Product Type: Enterprise/Data Center Security Appliance (Firewall/VPN/Router)
Product Name: Juniper SRX1400BASE‑XGE‑AC Security Gateway

KEY FEATURES:
Chassis‑based high‑performance security platform with integrated 10 GbE System I/O
Modular design supports additional interface cards and services processing cards
Integrated security services: stateful firewall, IPsec VPN, intrusion prevention system (IPS)
Supports a range of advanced Junos OS security and routing features
AC power supply included (redundant AC optional)
Rack‑mountable 3 RU chassis
Management interfaces include console, auxiliary, Gigabit management, and USB

NETWORK INTERFACES:
Built‑in 1 GbE ports: 6 × RJ‑45
Built‑in high‑speed ports: 3 × 10 GbE SFP+ and 3 × 1 GbE SFP
Out‑of‑Band (OOB) Management: 1 × Gigabit RJ‑45
Console: RJ‑45 + AUX
USB: 2 × USB ports
Expansion: One IOC slot for additional interfaces

PERFORMANCE:
Stateful Firewall Throughput: ~10 Gbps
Firewall Throughput (IMIX): ~5 Gbps
IPS Throughput: ~2 Gbps
IPsec VPN Throughput: ~2 Gbps
Maximum Concurrent Sessions: ~500,000
Security Policy Capacity: ~40,000
Connection Rate (sustained): ~45,000 CPS

ENVIRONMENTAL & RELIABILITY:
Operating Temperature: ~0 °C to ~40 °C (32 °F to 104 °F)
Operating Humidity: 5 % to 90 % non‑condensing
Designed for enterprise, data center, and service provider deployments
Hot‑swappable AC power supply with optional redundancy

PHYSICAL:
Form Factor: 3 RU rack‑mountable chassis
Dimensions (W × H × D): ~17.5″ × 5.25″ × 13.8″ (~44.5 × 13.3 × 35.1 cm)
Weight (Base Chassis): ~29.3 lb (~13.3 kg)
Weight (Fully Configured): ~42.5 lb (~19.3 kg)
Heat Dissipation (AC): ~1,654 BTU/hr
Designed with front‑to‑back airflow
