SG110-16-NA Specifications

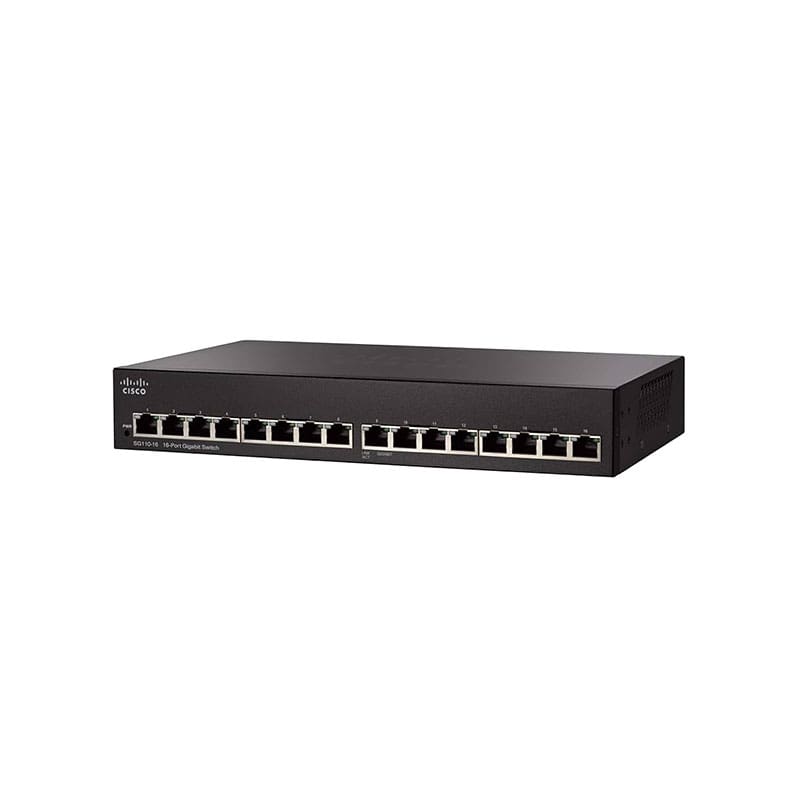

Cisco Small Business 16-Port Gigabit Unmanaged Switch
Manufacturer: Cisco
Manufacturer Model: SG110-16-NA
Product Line: Cisco 110 Series
Product Series: SG110 Series
Product Type: Unmanaged Ethernet Switch
Product Name: Cisco SG110-16 16-Port Gigabit Unmanaged Switch
KEY FEATURES:
Number of Ports: 16 × 10/100/1000 Mbps Gigabit Ethernet ports
Unmanaged: Plug-and-play, no configuration required
Energy Efficient: Supports IEEE 802.3az Energy Efficient Ethernet to reduce power consumption when links are idle
Silent Operation: Fanless design ideal for office environments
Automatic Features: Auto-MDI/MDI-X, auto-negotiation per port
PERFORMANCE:
Maximum Forwarding Rate: 23.8 Mpps (64-byte packets)
Switching Capacity: 32 Gbps full-duplex
MAC Address Table Size: 8,000 entries
Jumbo Frame Support: Up to 9,216 bytes
ENVIRONMENTAL & RELIABILITY:
Operating Temperature Range: 0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature Range: –20 °C to 70 °C (–4 °F to 158 °F)
Operating Humidity: 10% to 90% non-condensing
Certifications: UL 60950, CSA 22.2, CE Mark, FCC Part 15 Class A
PHYSICAL:
Dimensions (W × D × H): Approx. 279 mm × 170 mm × 44 mm (11 in × 6.7 in × 1.7 in)
Weight: ~1.3 kg (2.9 lb)
Power Input: AC 100‑240 V, 50/60 Hz internal power supply
Color: Standard Cisco black/dark grey
