SAS9207-8I LSI Logic Int PCI-Express 3.0 SATA at discount

SAS9207‑8i Specifications

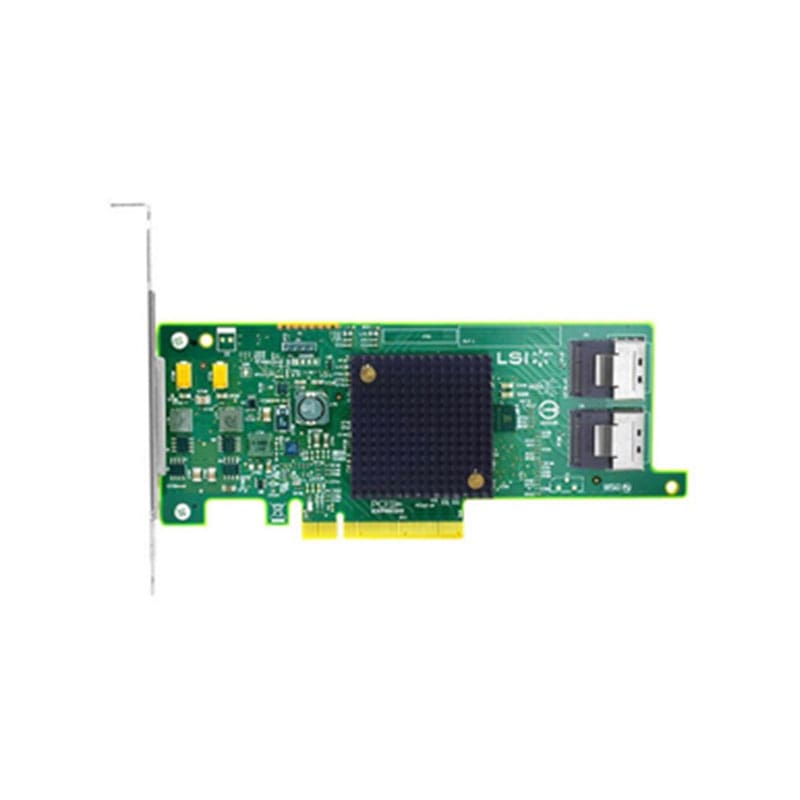

Broadcom / LSI Logic SAS 9207‑8i 8‑Port 6 Gb/s Internal SAS/SATA PCIe Host Bus Adapter (HBA)

Manufacturer: Broadcom / LSI Logic
Manufacturer Model: SAS9207‑8i
Product Line: SAS 9207 Series
Product Series: SAS 9207‑8i
Product Type: PCIe Host Bus Adapter (HBA) / SAS Controller
Product Name: Broadcom / LSI SAS 9207‑8i 8‑Port HBA

KEY FEATURES:

Internal Ports: 8 total SAS/SATA connectivity via internal interfaces

Connector Type: Two x4 internal Mini‑SAS (SFF‑8087) connectors

Host Bus Interface: PCI Express 3.0 ×8

Protocol Support: SAS and SATA devices

Fusion‑MPT Architecture for high throughput and scalability

Supports up to 512 SAS/SATA endpoint devices

PERFORMANCE:

Data Transfer Rate: Up to 6 Gb/s per port

PCIe Throughput: PCIe 3.0 ×8 for high internal storage throughput

Optimized for high‑performance server storage arrays

ENVIRONMENTAL & RELIABILITY:

Designed for enterprise and data center HBA applications

Green / RoHS compliant

Typical Warranty: ~3 years (vendor dependent)

PHYSICAL:

Form Factor: PCIe add‑in card (full‑height)

Card Dimensions: Standard full‑height PCIe card size

Operating Platform Support: PC, servers, and enterprise systems
