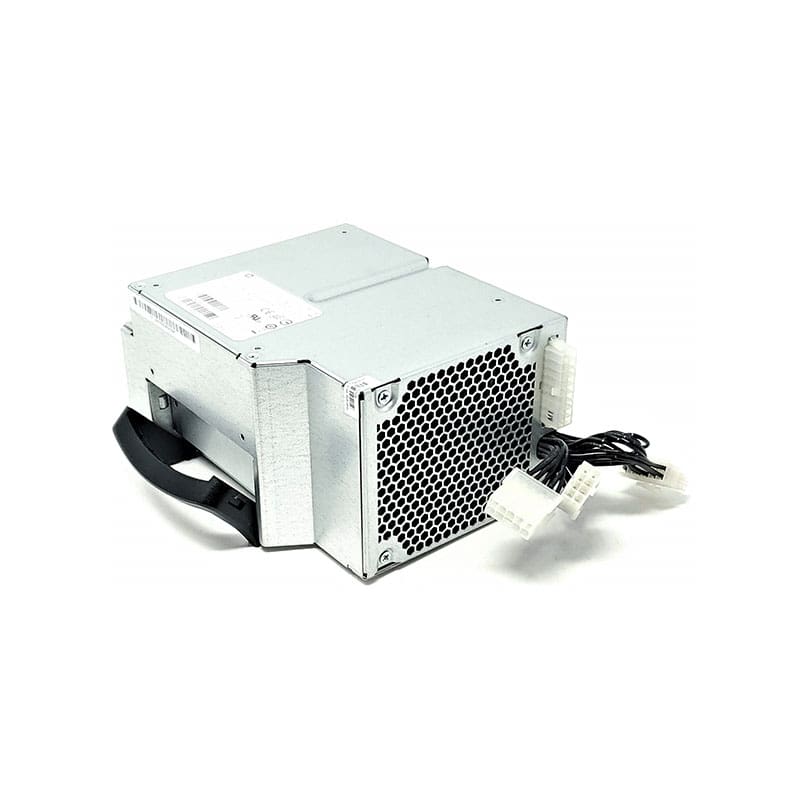

S10-800P1A-HP HP 800 Watts Power Supply Z620 at discount

S10-800P1A Specifications

HP 800 W ATX Power Supply for Z620 Workstation

Manufacturer: HP
Manufacturer Model: S10-800P1A
Product Line: HP Workstation Power Supply
Product Series: Z620 Series 800 W
Product Type: Internal Power Supply Unit
Product Name: HP 800 W Power Supply (Model S10-800P1A)

KEY FEATURES:
Power Capacity: 800 Watts
Input Voltage Range: 100-240 V AC, 9.7 A, 50-60 Hz
Form Factor: ATX internal power supply designed for HP Z620 workstations
Connector Types: 18-Pin M1, 8-Pin G3, 6-Pin R2, 8-Pin P2
Hot-Swap Support: No (standard internal PSU, not hot-plug)

PERFORMANCE:
Rated Output Power: 800 W continuous
Efficiency: Approximately 90% at 50% load

ENVIRONMENTAL & RELIABILITY:
Designed for enterprise workstation environments such as the HP Z620
Global AC input supports a wide voltage range for international use
Reliability: Built for continuous 24×7 operation in workstation systems

PHYSICAL:
Dimensions: Approx. 140 mm × 96 mm × 183 mm
Weight: ~5.1 lb
