RU1244C HighPoint Technologies 4-Port 10G USB at discount

RU1244C Specifications

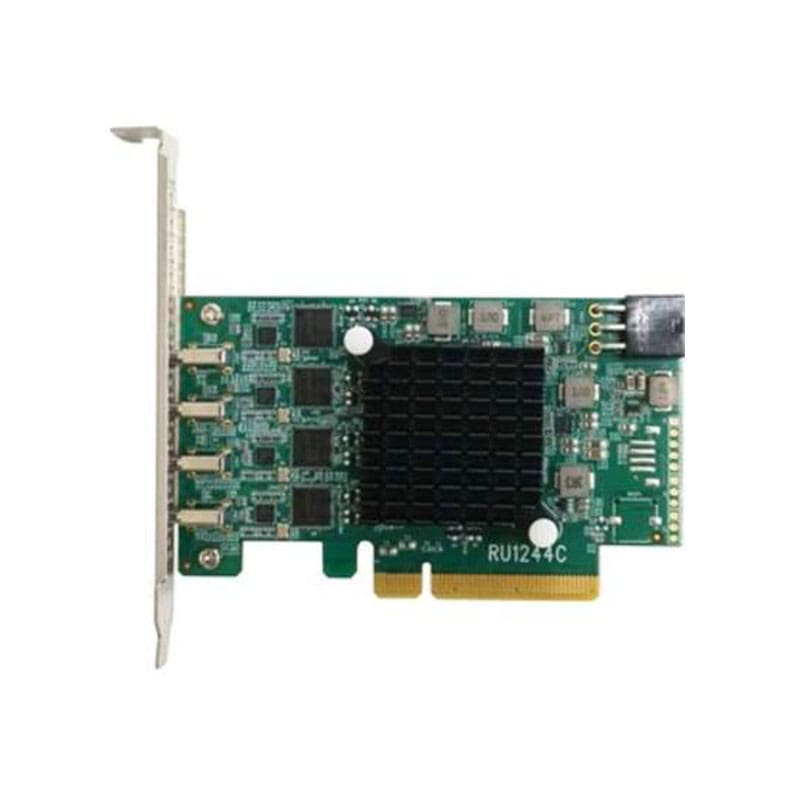

HighPoint RocketU 1244C 4‑Port USB 3.2 Gen 2 PCIe Host Adapter

Manufacturer: HighPoint Technologies, Inc
Manufacturer Model: RU1244C
Product Line: RocketU
Product Series: RocketU 1244
Product Type: USB Host Bus Adapter (PCIe USB Controller)
Product Name: HighPoint RocketU 1244C USB 3.2 Host Adapter

KEY FEATURES:

Host Interface: PCI Express 3.0 x8

USB Ports: 4 × USB‑C Type‑C USB 3.2 Gen 2 (10 Gb/s) ports

Dedicated Per‑Port Architecture: Each USB port has its own controller for independent full‑speed throughput

Backward Compatible: USB 3.2 Gen 2, Gen 1, USB 2.0 supported

Supported Standards: xHCI, UASP

Power Delivery: Up to ~7.5 W per port for device operation or charging

External Power Support: 6‑pin PCIe power input for stable power delivery under load

Form Factor: Low‑profile PCIe card with bracket included

PERFORMANCE:

Maximum Data Rates: Up to 10 Gb/s per port (USB 3.2 Gen 2)

Total Ports: 4 independent USB ports

Controller Chipset: ASM3142 or equivalent dedicated USB controllers

ENVIRONMENTAL & RELIABILITY:

Designed For: High‑speed data acquisition, USB storage, imaging/capture, media archiving and similar applications

Operating Temperature: ~5 °C – ~45 °C

Storage Temperature: ~‑40 °C – ~65 °C

Operating Voltage: PCIe 12 V and 3.3 V rails

Typical Power Consumption: ~8.8 W (card only)

MTBF: ~920,585 hours

Certifications: CE, FCC, RoHS, REACH, WEEE

PHYSICAL:

Form Factor: PCIe plug‑in card (low‑profile/half‑height supported)

Dimensions (W × H × D): ~4.52″ × ~2.71″ × ~0.71″

Weight: ~0.46 lb (~209 g)

COMPATIBILITY:

Host Systems: Desktop or server with available PCIe 3.0 x8 (or larger) slot

Operating Systems: Windows (10, 8.1, 7, Server variants), macOS, Linux (kernel 3.10+), VMware ESXi
