RSC-R2UW-2E8R Supermicro Accessory Riser Card at discount

RSC‑R2UW‑2E8R Specifications

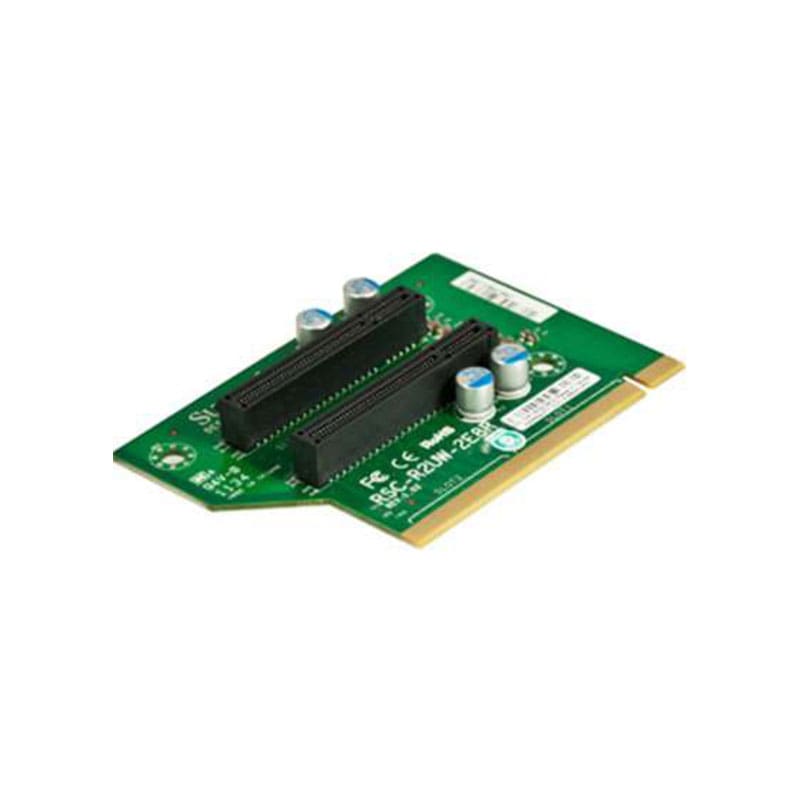

Supermicro 2U Right‑Hand‑Side WIO PCIe Riser Card

Manufacturer: Supermicro Computer, Inc
Manufacturer Model: RSC‑R2UW‑2E8R
Product Line: Supermicro Riser Cards
Product Series: 2U RHS WIO Passive Riser
Product Type: Internal PCIe Riser Card
Product Name: RSC‑R2UW‑2E8R Riser Card

KEY FEATURES:

Purpose: PCIe expansion riser card for server chassis

Design: Passive (no active cooling)

Fitment: Right‑hand‑side (RHS) orientation in 2U server chassis

Input Connector: WIO interface (server backplane/board connection)

Output Slots: 2 × PCI‑Express x8 expansion slots (PCIe 3.0 compatible)

PCIe Support: Gen2 and Gen3 supported

RoHS compliance for environmental safety

PERFORMANCE:

Host Interface: PCI Express x16 input providing signals to two PCIe x8 output slots

Expansion Capability: Doubles expansion options by splitting a single riser connection into two PCIe x8 slots for add‑in cards (network, storage controllers, etc.)

Passive design means no active power draw or cooling — reliant on chassis airflow

ENVIRONMENTAL & RELIABILITY:

Target Use: Designed for use in enterprise and data‑center server chassis in 2U rackmount systems

Operating Conditions: Typical server operating ranges; exact temperature/humidity depend on chassis specification

Reliability: Solid passive mechanical rerouting of PCIe lanes for add‑in card expansion — no electronic active components

PHYSICAL:

Form Factor: Internal riser card specifically sized for 2U server chassis

Position: Mounted on the right‑hand side (RHS) of the chassis’s riser area

Slots Provided: 2 × PCIe x8 (mechanical and electrical PCIe 3.0 lanes)

Weight: ~0.23 kg (approx.)

Color: Green PCB with metallic connectors (typical for server risers)
