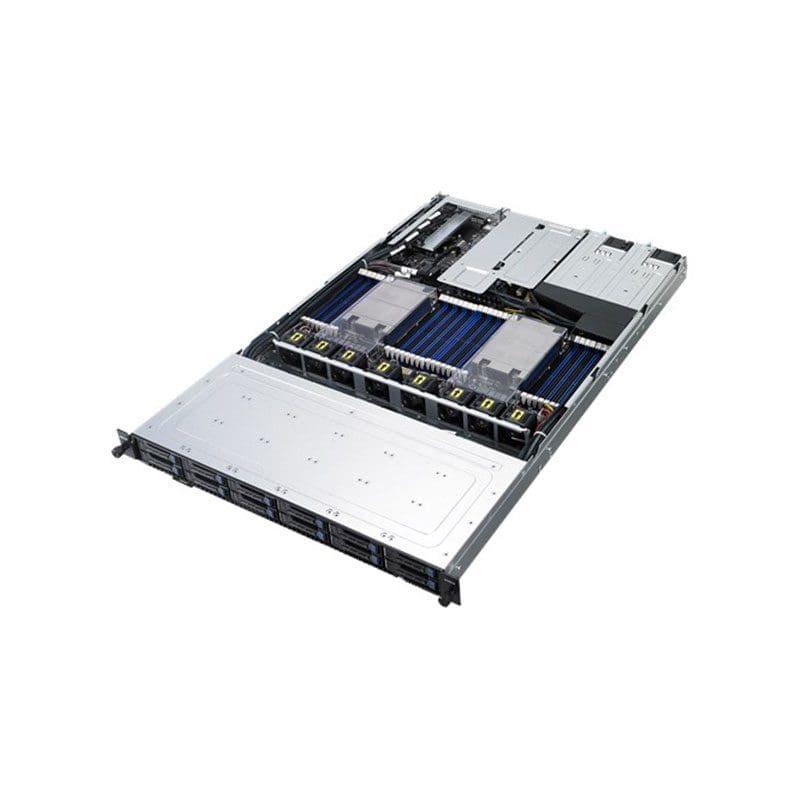

RS700A-E9-RS12 Asus AMD Epyc E9 1u DDR4 12X2.5HSs

RS700A-E9-RS12  Specifications

RS700A-E9-RS12 1U AMD EPYC Server

Manufacturer: ASUS
Manufacturer Model: RS700A‑E9‑RS12
Product Line: ASUS Server
Product Series: RS700A / EPYC Platform
Product Type: Rackmount Server Barebone
Product Name: ASUS RS700A‑E9‑RS12

KEY FEATURES:
Drive Bays: 12 × 2.5″ hot-swap
Storage Flexibility: Supports 8 NVMe + 4 SATA, 4 NVMe + 8 SATA, or 4 NVMe + 8 SAS with optional PIKE II card
M.2 Slots: 2 × M.2 (SATA 6 Gb/s or PCIe 3.0 x4)
Expansion Slots: 1 × PCIe 3.0 x16, 2 × PCIe 3.0 x8, 1 × OCP Mezzanine x16
CPU Platform: AMD EPYC (high core-count support)
Memory Support: 32 DIMM slots, DDR4‑2666 up to 4TB total memory
Remote Management: Embedded ASMB9-iKVM, ASUS Control Center support
Thermal & Fan Control: Thermal Radar sensors, dynamic fan curve, GUI adjustment via BMC
Reliability Features: Hot-swap support, redundant fans, enterprise-class design

PERFORMANCE:
CPU: Up to AMD EPYC, 32 cores / 128 threads per CPU
I/O Performance: High throughput via PCIe 3.0 slots and dual M.2

ENVIRONMENTAL & RELIABILITY:
Operating Temperature Range: 10 °C – 35 °C
Storage Temperature Range: –40 °C – 70 °C
Operating Humidity: 20% – 90% non-condensing
Shock Resistance: Not explicitly specified
Vibration Resistance: Not explicitly specified

PHYSICAL:
Form Factor: 1U Rackmount
Dimensions (W × D × H): 27.0″ × 17.48″ × 1.73″ (≈ 68.6 × 44.4 × 4.4 cm)
Weight: Not explicitly specified
Power Supply: Dual-redundant 800W 80 PLUS Platinum
Color: Black / Server Chassis Design
Management Controller: Aspeed AST2500 with 64 MB video memory
Networking: Dual 1GbE + 1 Management LAN
