ROG STRIX Z490-H GAMING ASUS ASUS Republic of Gamers

ROG STRIX Z490-H Specifications

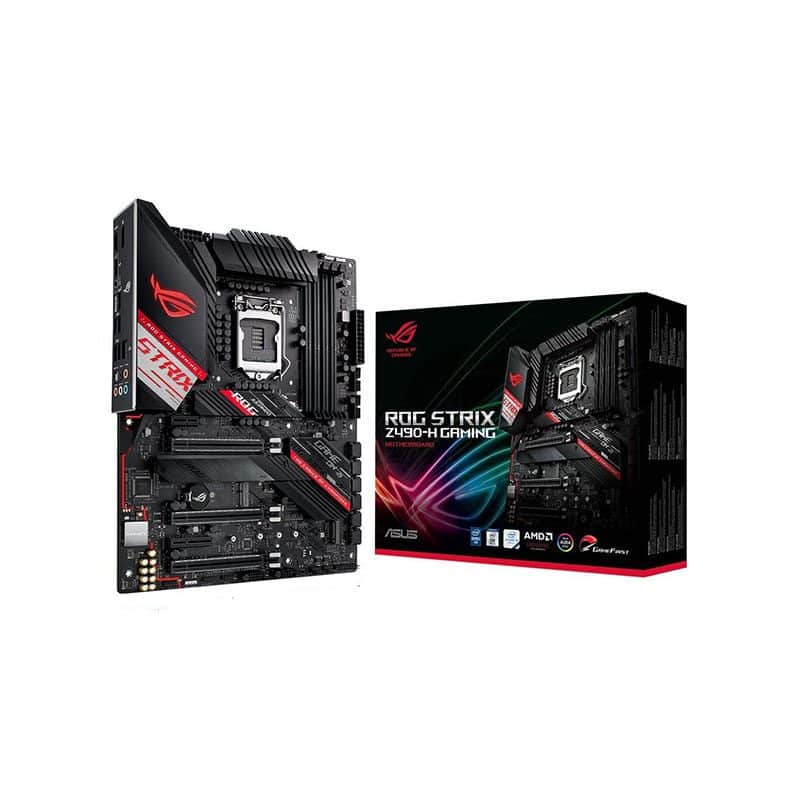

ASUS ROG STRIX Z490-H ATX Motherboard

Manufacturer: ASUS
Manufacturer Model: ROG STRIX Z490-H
Product Line: ASUS ROG (Republic of Gamers)
Product Series: Z490
Product Type: ATX Motherboard
Product Name: ASUS ROG STRIX Z490-H

KEY FEATURES:
CPU Socket: LGA 1200, supports Intel 10th Gen Core, Pentium Gold, and Celeron CPUs
Chipset: Intel Z490
Memory: 4 × DDR4 DIMM, up to 128 GB, dual-channel, non-ECC
Supported Memory Speeds: 4800 / 4600 / 4400 / 4266 / 4133 / 4000 / 3866 / 3733 / 3600 / 3466 / 3400 / 3333 / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz
Graphics Output: HDMI 1.4, DisplayPort 1.4
Multi-GPU Support: AMD CrossFireX, NVIDIA 2-Way SLI
Expansion Slots: 2 × PCIe 3.0 ×16, 1 × PCIe 3.0 ×16 (x4), 2 × PCIe 3.0 ×1
Storage: 2 × M.2 slots, 6 × SATA III (6 Gb/s), RAID 0/1/5/10
LAN: Intel I225-V 2.5 Gb Ethernet
Audio: ROG SupremeFX S1220A 8-channel HD Audio
USB Ports: Rear: 2 × USB 3.2 Gen 2, 4 × USB 3.2 Gen 1, 2 × USB 2.0; Internal: 2 × USB 3.2 Gen 1 headers, 2 × USB 2.0 headers
Cooling & Power: VRM heatsinks, multiple fan headers, water pump header
Protection / Stability: ASUS SafeSlot, overvoltage and overcurrent protection, thermal sensors

PERFORMANCE:
Maximum Memory Speed: Up to DDR4-4800 (OC)
CPU Support: Intel 10th Gen Core, Pentium Gold, and Celeron CPUs

ENVIRONMENTAL & RELIABILITY:
Operating Temperature Range: Not explicitly specified
Storage Temperature Range: Not explicitly specified
Operating Humidity: Not explicitly specified
Shock Resistance: Not explicitly specified
Vibration Resistance: Not explicitly specified
Reliability Features: Designed for gaming and high-performance workloads, 24/7 operation

PHYSICAL:
Form Factor: ATX (30.5 × 24.4 cm)
BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
Weight: Not explicitly specified
Color: Black with RGB accents
