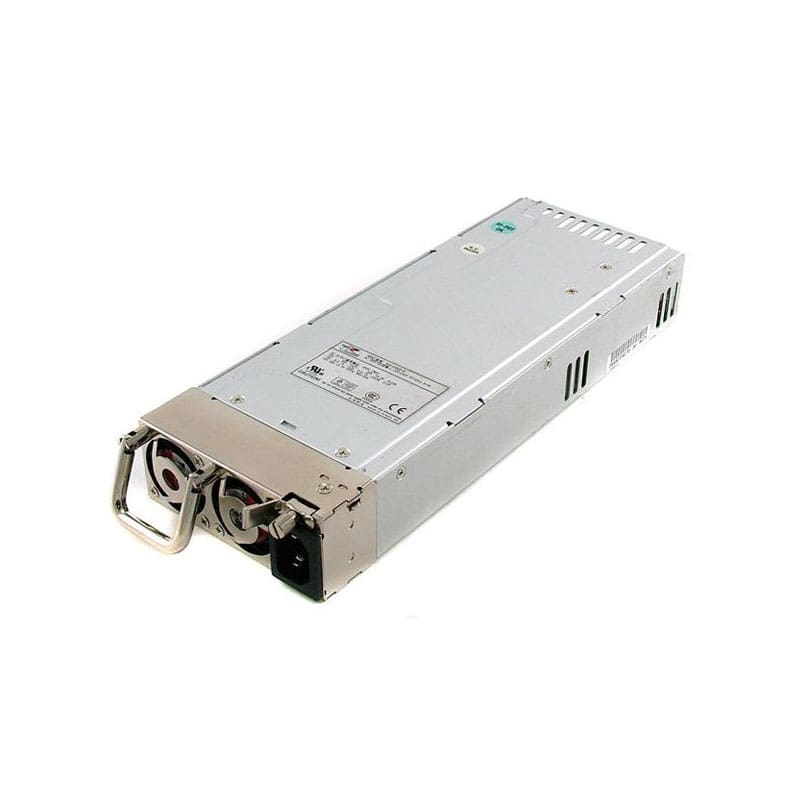

R2W-6460P-R EMACS 460 Watts AC Power Supply at discount

R2W-6460P-R Specifications

EMACS / Zippy 460 W Hot-Swappable Redundant Power Supply Module

Manufacturer: EMACS
Manufacturer Model: R2W-6460P-R
Product Line: R2W Series Redundant Power Supplies
Product Series: 2 U High-Density Redundant PSU Module 460 W
Product Type: Internal Rack-Server Redundant Power Supply Module
Product Name: EMACS 460 W Hot-Plug Redundant PSU Module

KEY FEATURES:
Maximum Output Power: 460 W
AC Input Voltage: Full-range 100-240 V AC
Input Frequency: 47-63 Hz
Input Current: ~8 A at 115 V / ~4 A at 230 V
Hot-Swap Support: Yes (1+1 redundant, hot-plug capable)
Power Factor Correction (PFC): Active PFC built in

PERFORMANCE:
Multiple output rails: +5 V up to 30 A; +12 V up to 32 A; +3.3 V up to 24 A; −5 V up to 0.7 A; −12 V up to 0.7 A; +5 VSB up to 2 A
Total current for +5 V and +3.3 V combined not to exceed 43 A
Designed for 2U chassis redundancy (1+1 modules)

ENVIRONMENTAL & RELIABILITY:
Operating Temperature Range: 0 °C to 40 °C
Storage Temperature Range: –20 °C to 70 °C
Efficiency: ~68% typical at full load, 115 V input
Reliability Features: Redundant hot-swappable modules, alarm buzzer, LED status indicator, remote sensing, built for 24×7 server operation

PHYSICAL:
Form Factor: Plug-in redundant module designed for 2U rack chassis
Typical Dimensions: 84 mm (H) × 101 mm (W) × 300 mm (D)
Cooling: Two 38 mm × 28 mm DC ball-bearing fans per module
