R2416ULI Altronix 16 Outputs Power Supply at discount

R2416ULI Specifications

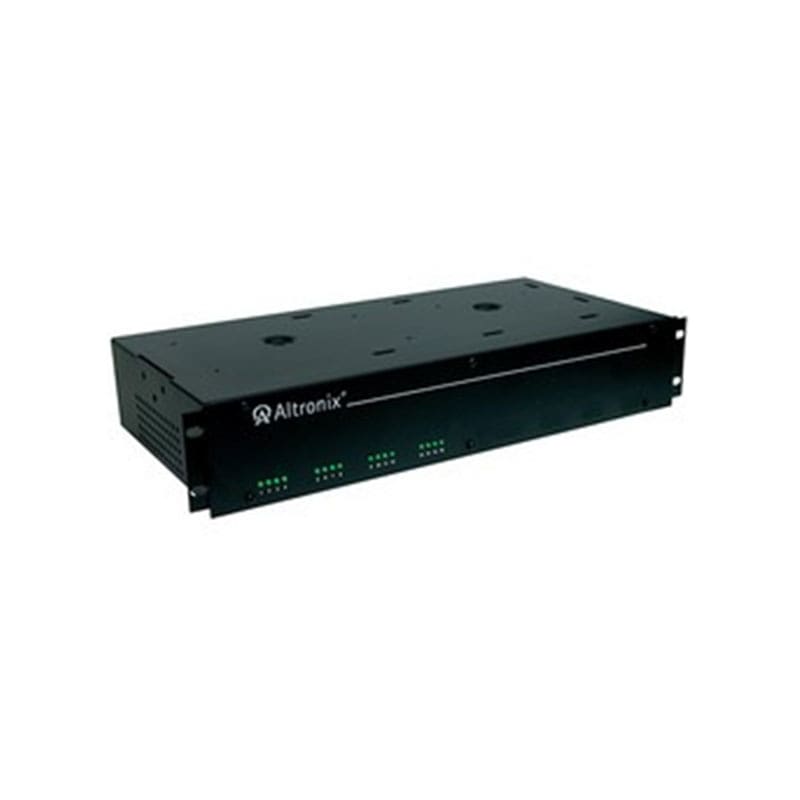

Altronix 24 VAC 16‑Output CCTV Power Supply (Isolated Fuse Protected Outputs)

Manufacturer: Altronix
Manufacturer Model: R2416ULI
Product Line: Rack‑Mount CCTV Power Supplies
Product Series: 16‑Output Isolated Fused (2U EIA 19″ Rack)
Product Type: Power Supply / Distribution
Product Name: Altronix 24 VAC 16‑Output CCTV Power Supply (Isolated Fuse Protected Outputs)

KEY FEATURES:
Input Voltage: 115 VAC, 50/60 Hz (approx. 5.4 A)
Output Voltage: 24 VAC
Total Supply Current: 25 A (600 VA)
Number of Outputs: Sixteen (16) fuse‑protected isolated outputs
Maximum Load per Output: 3.5 A each (typical)
Individual Output Isolation: Each output is electronically isolated, ideal for CCTV/heaters/infrared loads
Features: Illuminated master power disconnect circuit breaker with manual reset; 3‑wire grounded line cord; removable terminal blocks with locking screw flanges; spare fuses provided

PERFORMANCE:
Total Output Capacity: 24 VAC @ 25 A continuous
System AC Input VA Requirement: ~690 VA
Approximate BTU/Hr: ~227 BTU/Hr
Operating Ambient Range: 0 °C to 49 °C (32 °F to 120 °F)

ENVIRONMENTAL & RELIABILITY:
Storage Temperature Range: –20 °C to 70 °C (–4 °F to 158 °F)
Relative Humidity: Up to 85% ± 5%
Listings: UL 2044 (Commercial CCTV Equipment)
Compliance: cUL Listed (CSA Standard C22.2 No.1‑98)

PHYSICAL:
Chassis: 2U rack‑mount (EIA 19″)
Dimensions (H × W × D): 3.26″ × 19.125″ × 8.5″ (83 mm × 486 mm × 216 mm)
Weight: Approx. 24.4 lb (11.07 kg)
Color: Not explicitly specified

COMPATIBILITY & COMPLIANCE:
Designed for powering CCTV cameras, infrared heaters, and other video system accessories requiring multiple isolated 24 VAC outputs.
