R2416300ULCB Altronix 110VAC Power Supply at discount

R2416300ULCB Specifications

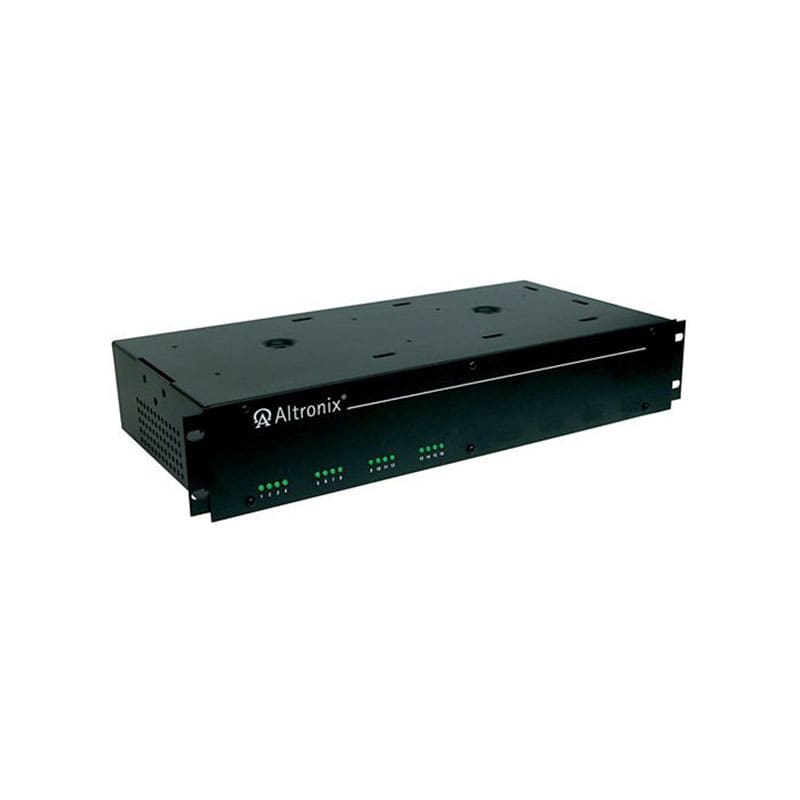

Altronix 24/28 VAC 16‑Output Rack‑Mount CCTV Power Supply (PTC Protected Outputs)

Manufacturer: Altronix
Manufacturer Model: R2416300ULCB
Product Line: R2416UL Series
Product Series: “300” version (12.5 A/10 A) PTC Protected
Product Type: CCTV Power Supply / Distribution
Product Name: Altronix 24/28 VAC 16‑Output Rack‑Mount CCTV Power Supply (PTC Protected Outputs)

KEY FEATURES:
Input Voltage: 115 VAC, 50/60 Hz
Output Voltage: Selectable 24 VAC or 28 VAC
Total Output Current: 12.5 A at 24 VAC (300 VA) or 10 A at 28 VAC (280 VA)
Number of Outputs: Sixteen (16) Class‑2 Rated PTC auto‑resetting outputs
Maximum Output Rating per Output: 2.5 A
Indicators & Controls: Sixteen (16) power indicators; illuminated master power‑disconnect circuit breaker with manual reset; removable terminal blocks with locking screw flange; 3‑wire grounded line cord
Enclosure: 2‑U EIA 19″ rack‑mount chassis

PERFORMANCE:
Output Capacity: 24 VAC @ 12.5 A or 28 VAC @ 10 A
BTU/Hr (approx.): 156 BTU/Hr (24 VAC mode), 143 BTU/Hr (28 VAC mode)
System AC Input VA Requirement: Approx. 345 VA

ENVIRONMENTAL & RELIABILITY:
Operating Temperature Range: 0 °C to 49 °C (32 °F to 120 °F)
Storage Temperature Range: −20 °C to 70 °C (−4 °F to 158 °F)
Relative Humidity: Up to 85% ±5%
Listings: UL Listed (UL 2044) for Commercial CCTV Equipment; cUL Listed (CSA Standard C22.2 No.1‑98)

PHYSICAL:
Dimensions (W × H × D): 19.12″ × 3.25″ × 8.5″ (486 mm × 83 mm × 216 mm)
Weight (approx.): 17.2 lb (7.8 kg)
Color: Not explicitly specified

COMPATIBILITY & COMPLIANCE:
Designed for powering CCTV cameras, infrared heaters and other video accessories requiring multiple PTC‑protected 24 VAC/28 VAC outputs in a rack‑mount configuration.
