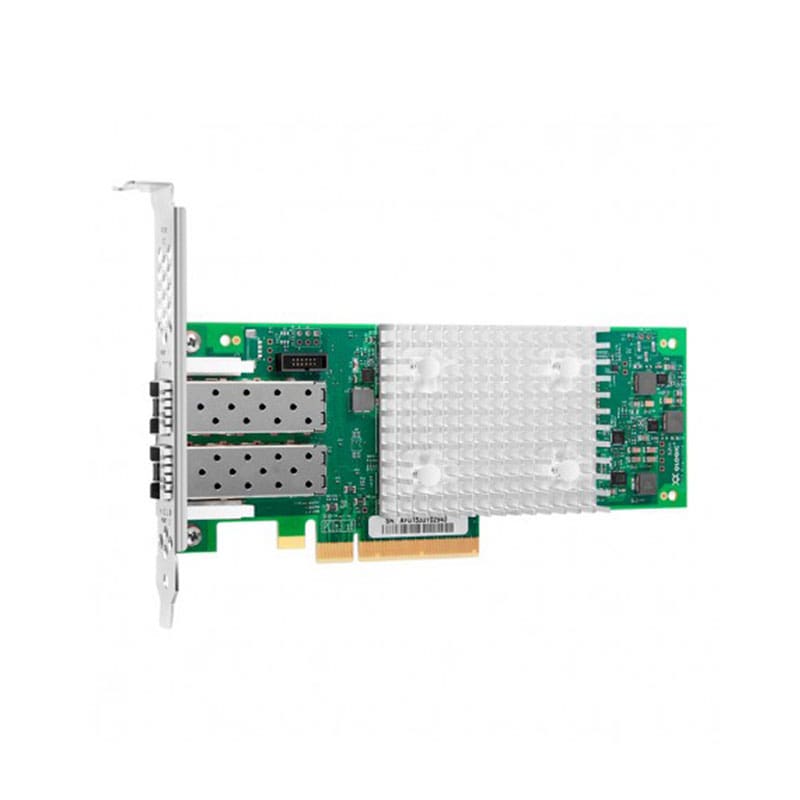

QLE2692-SR-CK QLogic Host Bus Adapter PCIe 3.0 at discount

QLE2692‑SR‑CK Specifications

QLogic 16 Gbps Dual‑Port Fibre Channel Host Bus Adapter (HBA)

Manufacturer: QLogic
Manufacturer Model: QLE2692‑SR‑CK
Product Line: QLogic 2690/2692 Series Fibre Channel Adapters
Product Series: QLE2692 Dual‑Port 16 Gbps Fibre Channel HBA
Product Type: Fibre Channel Host Bus Adapter (HBA)
Product Name: QLogic 16GFC Dual‑Port FC HBA PCIe Card

KEY FEATURES:

Fibre Channel Ports: 2 × 16 Gbps LC multimode ports

Host Interface: PCI Express 3.0 ×8

Enhanced Gen 5 (16GFC) FC technology for high‑performance storage networking

Supports quality of service (QoS), BIOS/UEFI support, NPIV, MSI‑X interrupts

Dual‑port configuration for redundancy and load balancing

Compatible with FC‑NVMe and SCSI‑FCP protocols

PERFORMANCE:

Data Transfer Rate: Up to 16 Gbps per port

Full‑Duplex Throughput: ~3,200 MB/s per port

Supports up to 2,048 concurrent logins and active exchanges per port

ENVIRONMENTAL & RELIABILITY:

Designed for enterprise storage area network (SAN) environments

Typical Warranty: 3 years

Operating Temperature: 0 °C to ~55 °C

Operating Humidity Range: 10 % – 90 %

PHYSICAL:

Form Factor: PCI Express Plug‑in Card (Low‑Profile)

Bus Type: PCIe 3.0 ×8

Approx. Dimensions: ~6.6″ × 2.7″ (168 mm × 69 mm
