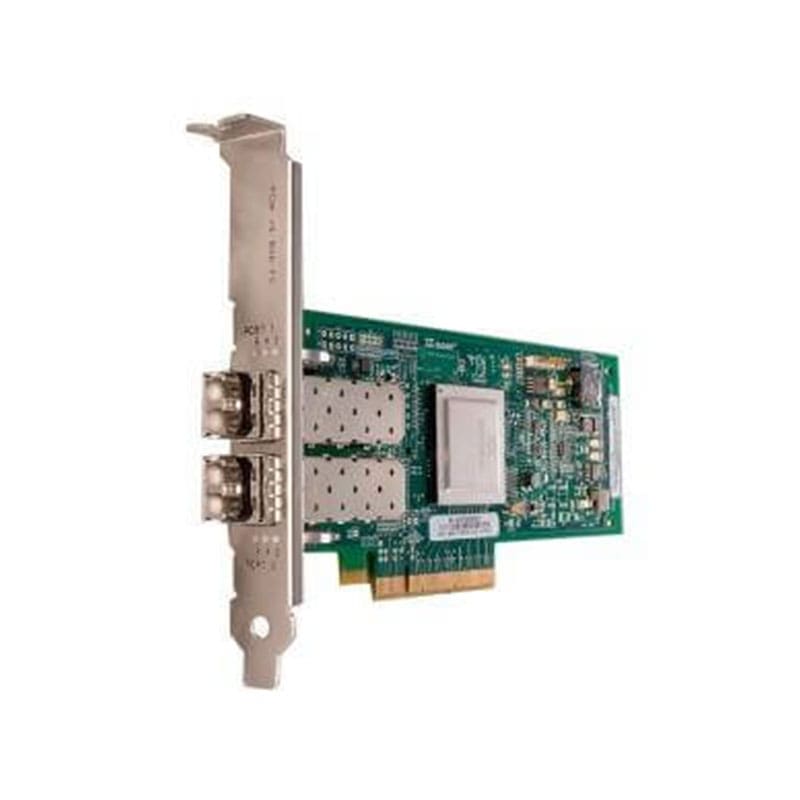

QLE2562-DELL Dell Fibre Channel Host Bus Adapter at discount

QLE2562 Specifications

Dell Dual-Port 8 Gbps Fibre Channel PCI‑Express HBA

Manufacturer: Dell
Manufacturer Model: QLE2562
Product Line: Dell QLogic Fibre Channel HBA
Product Series: Dual-Port 8 Gbps FC
Product Type: PCI‑Express Fibre Channel Host Bus Adapter
Product Name: Dell QLE2562 Dual-Port 8 Gbps Fibre Channel HBA

KEY FEATURES:

Ports: Dual 8 Gbps Fibre Channel (SFP+)

Interface Type: PCI‑Express x8

Fibre Channel Standard: 8 Gbps (backward compatible with 4 Gbps / 2 Gbps)

Hot-Pluggable Support: No (adapter itself is not hot-swappable, but supports SAN multipathing)

Compatible Operating Systems: Windows, Linux, VMware, others

SFP Modules: Optional, depending on part

PERFORMANCE:

Maximum Data Throughput: ~3.2 GB/s full duplex

IOPS: High performance for enterprise SAN environments

Latency: Low, optimized for block-level storage access

ENVIRONMENTAL & RELIABILITY:

Designed for enterprise server and SAN environments

Redundancy: Supports multipathing for high availability

MTBF: ~1,000,000 hours (varies by vendor specification)

Reliability Rating: Enterprise-class, 24×7 operation

PHYSICAL:

Form Factor: Standard PCI‑Express card

Typical Dimensions: Approx. 167 mm × 69 mm × 18 mm

Weight: ~0.15 kg (~0.33 lbs)
