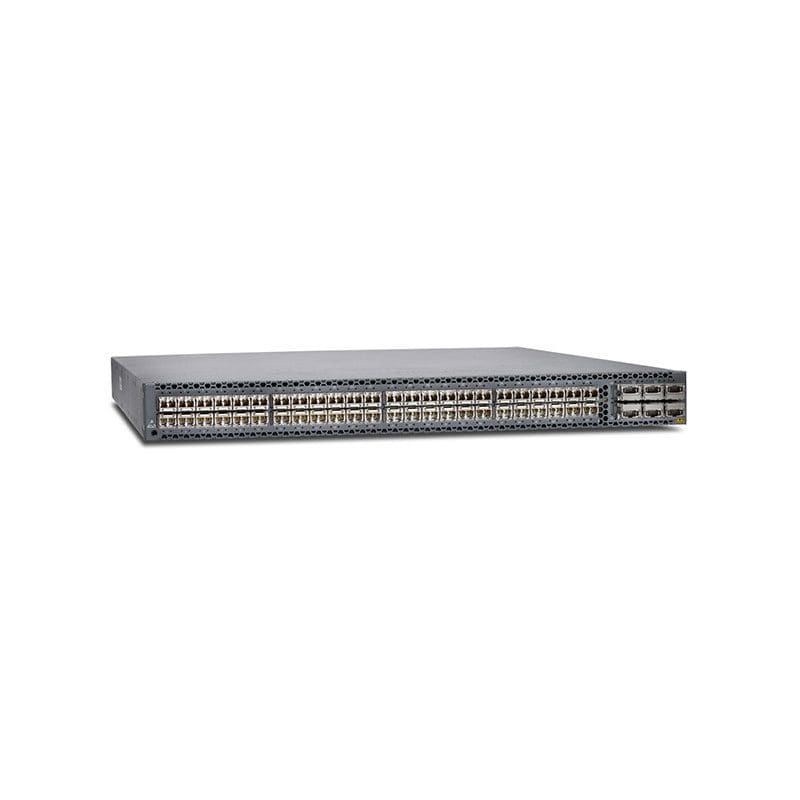

QFX5100‑48SH‑AFO Specifications
Manufacturer: Juniper Networks
Manufacturer Model: QFX5100‑48SH‑AFO
Product Line: QFX5100 Series
Product Series: 48‑Port SFP+/SFP plus uplinks (10 GbE)
Product Type: Fixed‑configuration Ethernet Data Center Switch
Product Name: Juniper QFX5100‑48SH‑AFO
KEY FEATURES:
48 native SFP/SFP+ ports capable of 10 GbE access
6 QSFP+ ports (for 40 GbE uplinks or breakout to 4×10 GbE)
Airflow orientation: AFO = front‑intake to back‑exhaust (front‑to‑back cooling)
Dual redundant AC power supply and redundant fans (in standard configuration)
Low‑latency switching and full L2/L3 functionality including VXLAN/EVPN and MC‑LAG
PERFORMANCE:
Switching capacity: ~1.44 Tbps (bidirectional)
Forwarding rate: ~1.08 Bpps (billion packets per second)
Shared packet buffer: ~12 MB (shared across all ports)
MAC address table size: Up to ~288,000 entries
Jumbo frame support: Up to ~9,216 bytes
ENVIRONMENTAL & RELIABILITY:
Designed for 24×7 data‑center deployment
Hot‑swappable fan modules and redundant power supplies for high availability
Operating temperature: ~0 °C to ~40 °C (typical)
Rack‑airflow must accommodate front‑to‑back cooling orientation
PHYSICAL:
Form Factor: 1 RU (1 rack‑unit) chassis
Dimensions: Approx. 4.37 cm (H) × 44.09 cm (W) × 52.02 cm (D)
Weight: Approx. 9.8 kg (21.8 lb) with standard configuration
IMPORTANT NOTES:
“48SH” indicates the 48‑port SFP/SFP+ version; confirm that your optics and transceivers support 10 GbE and breakout configurations as needed.
Uplink QSFP+ ports can be configured either for native 40 GbE or broken out into up to 4×10 GbE each—check cabling and optics accordingly.
Since this model is for data‑center level access/leaf deployments, ensure your rack, power, and cooling infrastructure are sized appropriately.
Verify whether AC power variant matches your rack’s feed and that airflow orientation (front‑to‑back) is compatible with your hot/cold aisle design.
Confirm firmware version, licensing requirements for advanced features, and spare‑part availability in your region before procurement.
