PRIME H410M-A/CSM ASUS LGA 1200 Intel H410 SATA 6Gb/s

PRIME H410M‑A/CSM Specifications

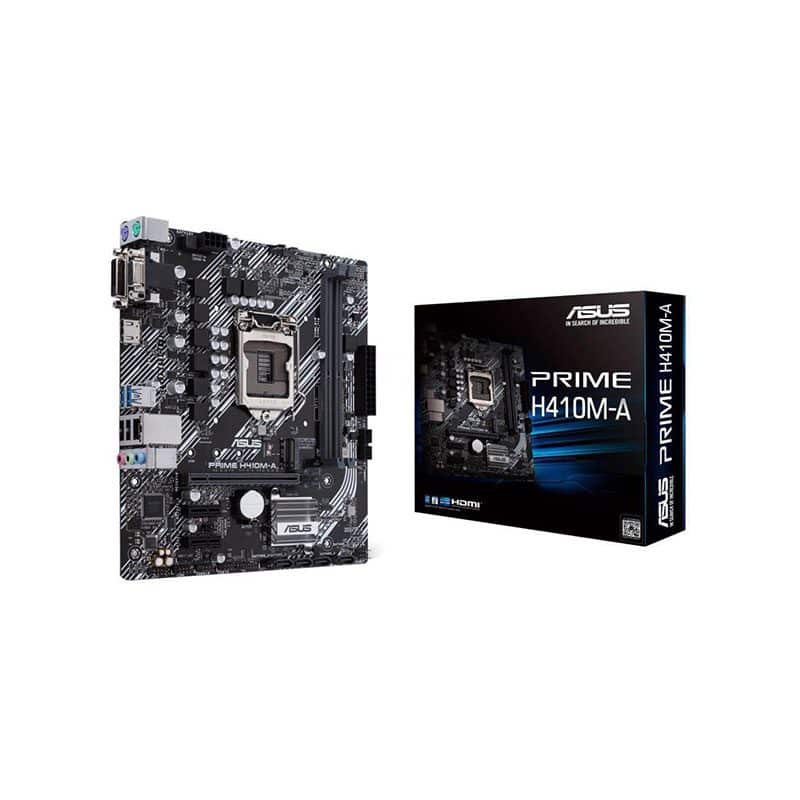

ASUS PRIME H410M‑A/CSM Micro‑ATX Motherboard

Manufacturer: ASUS
Manufacturer Model: PRIME H410M-A/CSM
Product Line: ASUS PRIME
Product Series: H410
Product Type: Micro-ATX Motherboard
Product Name: ASUS PRIME H410M-A/CSM

KEY FEATURES:
CPU Socket: LGA 1200 (10th Gen Intel Core, Pentium Gold, Celeron)
Chipset: Intel H410
Memory: 2 × DDR4 DIMM, up to 64 GB, non-ECC, dual-channel
Memory Speeds: 2933 / 2800 / 2666 / 2400 / 2133 MHz
Memory Technology: OptiMem for signal integrity
Graphics Output: 1 × HDMI, 1 × DVI-D, 1 × VGA (D-Sub)
Expansion Slots: 1 × PCIe 3.0 ×16, 2 × PCIe 3.0 ×1
Storage Interface: 1 × M.2 (2242/2260/2280; SATA & PCIe 3.0 ×2), 4 × SATA III (6 Gb/s)
Back I/O: 2 × USB 3.2 Gen 1, 2 × USB 2.0, PS/2 keyboard, PS/2 mouse, HDMI, DVI-D, D-Sub, LAN, 3 × audio jacks
Internal I/O: 1 × USB 3.2 Gen 1 header, 2 × USB 2.0 headers, 2 chassis fan headers, 1 CPU fan header, 1 M.2 socket, 4 × SATA, COM port header, TPM (SPI) header, Clear CMOS jumper, system panel connector, 24‑pin ATX power, 8‑pin 12V power
Protection / Stability: 5X Protection III (hardware safeguards)

PERFORMANCE:
Memory Performance: Supports up to 2933 MHz (with compatible CPU)
CPU Support: 10th Gen Intel Core / Pentium / Celeron, with Intel Turbo Boost 2.0 and (depending on CPU) Turbo Boost Max 3.0

ENVIRONMENTAL & RELIABILITY:
Manageability: Supports WOL by PME, PXE
Corporate Stability: Part of ASUS CSM program (longer lifecycle, enterprise / business‑grade support)

PHYSICAL:
Form Factor: mATX (22.6 × 20.3 cm)
BIOS: 128 Mb Flash ROM, UEFI AMI BIOS
Audio: Realtek ALC887 7.1‑channel HD audio
LAN: Realtek RTL8111H Gigabit Ethernet
Weight: Not explicitly specified
Color / Design: Standard motherboard PCB design
