PEXUSB4DP StarTech.com 4 Port USB PCIe Card at discount

PEXUSB4DP Specifications

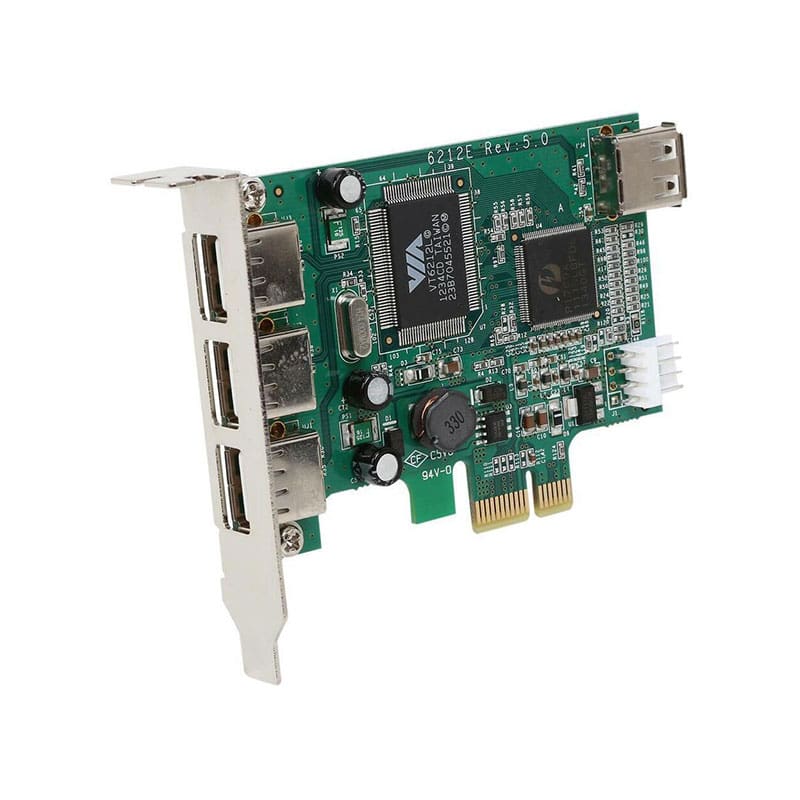

StarTech 4‑Port PCIe USB 2.0 Expansion Card

Manufacturer: StarTech
Manufacturer Model: PEXUSB4DP
Product Line: StarTech PCIe USB Expansion Cards
Product Series: 4‑Port USB 2.0 (Low Profile)
Product Type: Internal PCI Express USB Adapter Card
Product Name: StarTech 4‑Port PCIe USB 2.0 Card

KEY FEATURES:

USB Ports: 4 × USB 2.0 (3 external + 1 internal)

Interface: PCI Express x1 expansion card

Data Transfer Rate: High‑Speed USB 2.0 up to 480 Mbps

Backward Compatibility: Supports USB 1.1 and USB 1.0 devices

Dedicated Power Input: Provides full USB 2.0 power per port (up to 500 mA)

Brackets Included: Low‑profile + full‑profile brackets for standard and small form factor (SFF) cases

Plug‑and‑Play Installation with WHQL‑certified drivers

Warranty: 2‑year limited warranty

PERFORMANCE:

Maximum USB 2.0 Data Rate: 480 Mbps per port

USB Specifications: Complies with High‑Speed USB 2.0 standard

Supported Devices: Keyboards, mice, printers, scanners, storage devices, cameras, and other USB peripherals

ENVIRONMENTAL & RELIABILITY:

Operating Temperature: 0 °C to 75 °C

Storage Temperature: ‑40 °C to 125 °C

Operating Humidity: 0 % to 80 %

Designed for desktop, workstation, or server USB expansion use

PHYSICAL:

Form Factor: Internal PCI Express expansion card (low profile)

Slot Type Required: PCIe x1 (compatible with PCIe x4/x8/x16 slots)

Dimensions: ~80 mm × 90 mm × 20 mm

Weight: ~46 g

Color: Green PCB

Includes: Card, low‑profile bracket, full‑profile bracket, driver CD/installation instruction
