PEXUSB3S24 StarTech.com 2 Port PCI Express at discount

PEXUSB3S24 Specifications

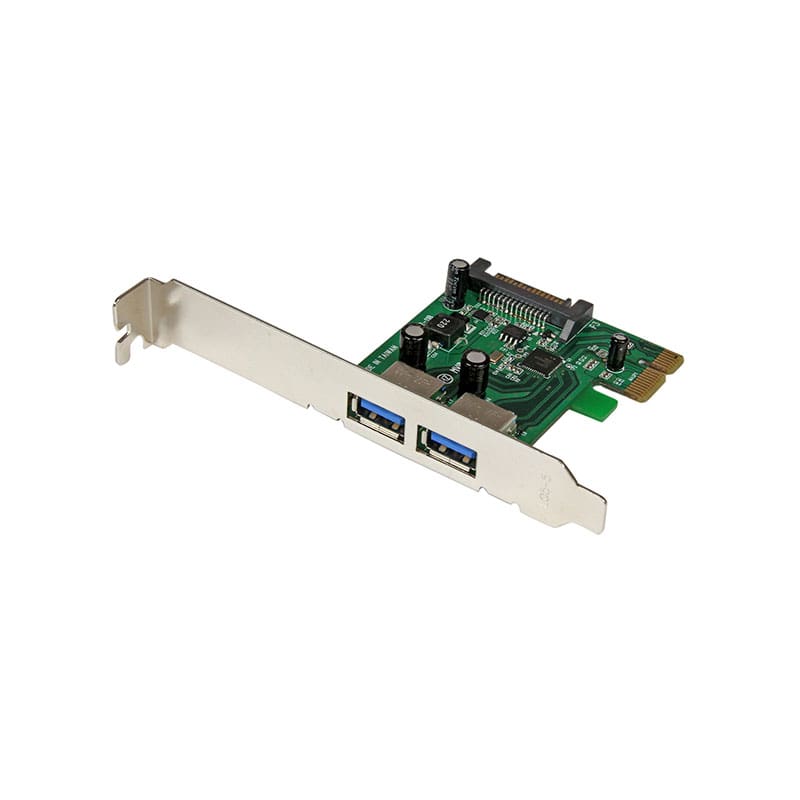

StarTech.com 2‑Port PCI Express USB 3.2 Gen 1 Adapter Card

Manufacturer: StarTech.com
Manufacturer Model: PEXUSB3S24
Product Line: StarTech PCIe USB Expansion Card
Product Series: USB 3.2 Gen 1 Adapter
Product Type: Internal USB Expansion Card
Product Name: StarTech.com PEXUSB3S24 2‑Port USB 3.2 Gen 1 PCIe Adapter

KEY FEATURES:

Host Interface: PCI Express x1

Output Ports: 2 × USB Type‑A (SuperSpeed USB 3.2 Gen 1, up to 5 Gbps)

Optional SATA Power Connector: Provides up to 900 mA per port for bus‑powered devices

Backward Compatibility: USB 2.0 and USB 1.1 devices supported

UASP (USB Attached SCSI Protocol) Support: Yes (improves performance with supported enclosures)

Bracket Options: Includes standard and low‑profile/half‑height brackets

Product Color: Metallic green

Warranty: 2‑year StarTech.com warranty with free technical support

PERFORMANCE:

Maximum Data Transfer Rate: Up to 5 Gbps per USB port (USB 3.2 Gen 1)

USB Battery Charging Specification 1.2 Supported

UASP Performance Boost: Faster read/write efficiency compared to traditional transfer protocol

ENVIRONMENTAL & RELIABILITY:

Operating Temperature: 5 °C – 50 °C

Storage Temperature: –25 °C – 70 °C

Relative Humidity (Operating): 20 % – 80 %

Certifications: CE, FCC, RoHS, TAA, REACH compliant

PHYSICAL:

Form Factor: Internal PCI Express expansion card

Approx. Dimensions: ~60 mm (L) × ~65 mm (H) × ~22 mm (W)

Weight: ~40 g

Package Contents: Adapter card, low‑profile bracket, quick‑start guide, documentation
