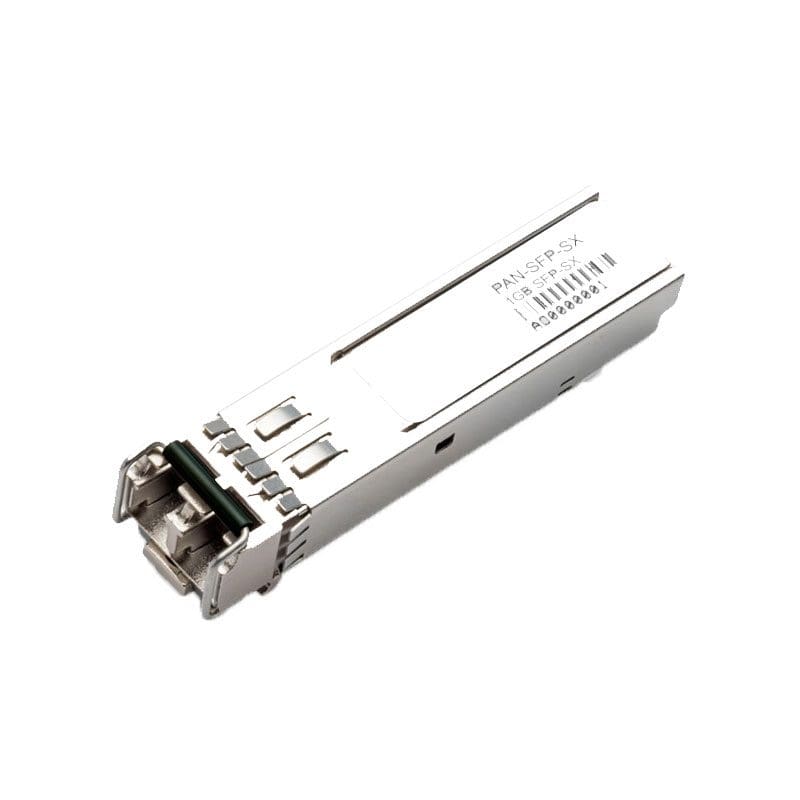

PAN-SFP-SX Palo Alto SFP (mini-GBIC) Transceiver at discount

PAN‑SFP‑SX Specifications

Palo Alto Compatible 1000BASE‑SX SFP Transceiver Module

Manufacturer: Palo Alto (compatible)
Manufacturer Model: PAN‑SFP‑SX
Product Line: Palo Alto Networks SFP Transceivers
Product Series: 1000BASE‑SX SFP
Product Type: SFP Optical Transceiver
Product Name: PAN 1000BASE‑SX SFP Module

KEY FEATURES:
Data Rate: 1.25 Gb/s
Wavelength: 850 nm (VCSEL)
Connector: Duplex LC
Fiber Type: Multi‑Mode (MMF)
Maximum Distance: 550 m (50/125 µm MMF)
Digital Diagnostics: DDM / DOM supported
Power Supply: +3.3 V
Operating Temperature: 0°C to +70°C
Compliance: IEEE 802.3z (1000BASE‑SX), INF-8074i, SFF-8472
RoHS Compliant: Yes
Hot Pluggable: Yes

PERFORMANCE:
Link Budget: ~7.5 dB
Receiver Sensitivity: ~ –17 dBm
Transmit Power: –9.5 dBm to –3 dBm

ENVIRONMENTAL & RELIABILITY:
Designed for enterprise networking, data center, and campus use
MTBF / Reliability: typical for SFP transceivers
Safety: Laser Class 1

PHYSICAL:
Form Factor: SFP (hot‑pluggable)
Weight: ~few grams
Housing: Metal with EMI protection
