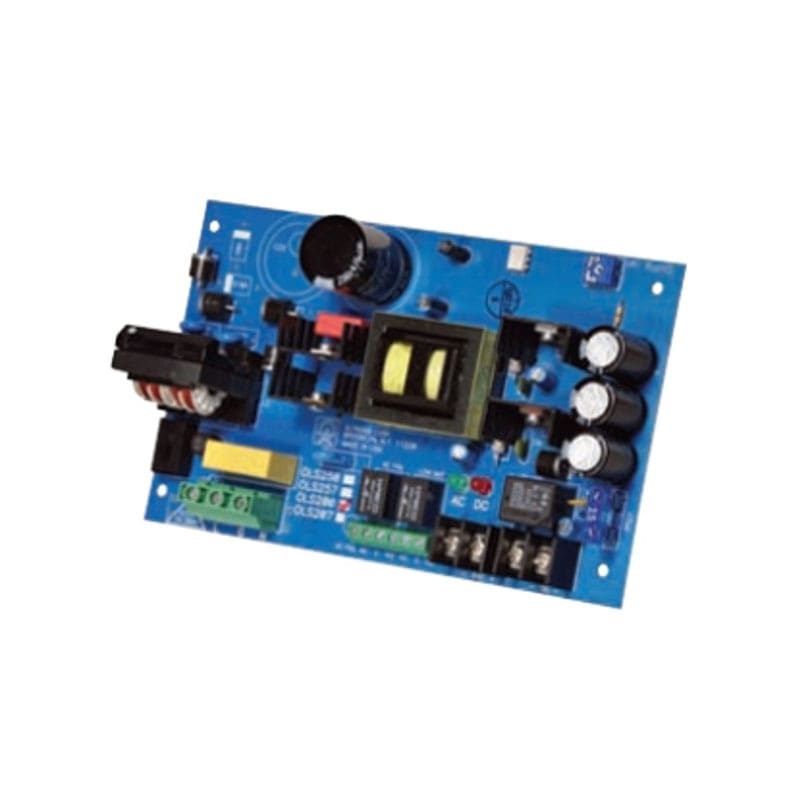

OLS200 Specifications
Altronix 12VDC or 24VDC Single Output Power Supply/Charger
Manufacturer: Altronix
Manufacturer Model: OLS200
Product Line: Altronix Power Supply Series
Product Series: OLS Series
Product Type: Single Output Power Supply/Charger
Product Name: Altronix OLS200 12VDC or 24VDC Single Output Power Supply/Charger
KEY FEATURES:
Input Voltage: 115VAC, 60Hz, 3.5A
Output Voltage: Selectable 12VDC or 24VDC (adjustable)
Output Current: 12VDC @ 10A or 24VDC @ 5A
Number of Outputs: Single continuous output
Battery Backup: Supports sealed lead-acid or gel-type batteries (automatic switch-over to backup during AC loss)
Protection: Short circuit, thermal overload protection, and filtered and regulated output
Indicators: AC input and DC output LED indicators
Applications: Access control, fire alarms, security, and CCTV systems
Features Supported: AC fail supervision, battery supervision, and low battery disconnect
PERFORMANCE:
Power Rating: Up to 120W
Output Regulation: ±5%
Ripple: <100mV
Efficiency: High-efficiency linear design
Backup Time: Dependent on connected battery capacity
ENVIRONMENTAL & RELIABILITY:
Operating Temperature Range: 0°C to 49°C (32°F to 120°F)
Storage Temperature Range: -20°C to 70°C (-4°F to 158°F)
Operating Humidity: 85% RH non-condensing
MTBF (Mean Time Between Failures): 100,000 hours typical
PHYSICAL:
Dimensions (W x D x H): 7.25″ x 8.5″ x 3.5″ (184mm x 216mm x 89mm)
Weight: Approximately 6.0 lbs (2.7 kg)
Color: Gray
Enclosure Type: Wall-mount, vented steel cabinet
