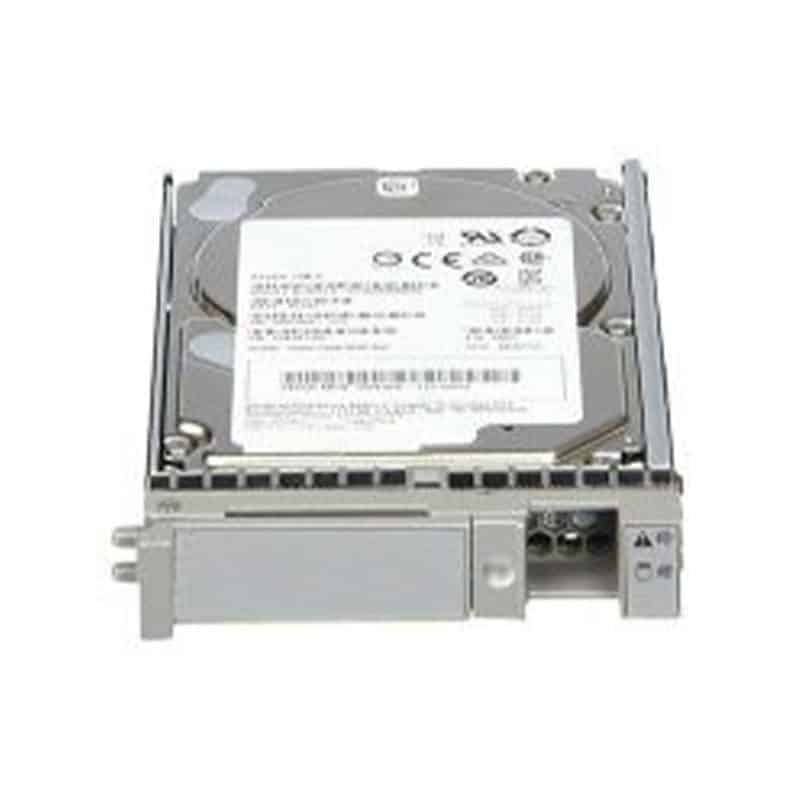

NAM24-8PHD1T7K12G Cisco Hard Drive 1TB SAS

NAM24-8PHD1T7K12G Specifications

Cisco 1 TB 7,200 RPM SAS 12G 3.5-inch Hot-Swap HDD

Manufacturer: Cisco
Manufacturer Model: NAM24-8PHD1T7K12G
Product Line: Cisco UCS Enterprise SAS HDD
Product Series: 3.5-inch LFF SAS
Product Type: Internal Hard Disk Drive (Hot-Swap)
Product Name: Cisco 1 TB SAS 12G HDD

KEY FEATURES:
Storage Capacity: 1 TB
Interface Type: SAS (12 Gb/s)
Rotational Speed: 7,200 RPM
Form Factor: 3.5-inch (LFF)
Hot-Swap Support: Yes
Self-Encrypting Drive (SED): Optional

PERFORMANCE:
Maximum Data Transfer Rate: ~1,200 MB/s
Average Seek Time: ~9 ms
Average Latency: ~4.17 ms

ENVIRONMENTAL & RELIABILITY:
Designed for enterprise UCS server environments with hot-swap capability
MTBF: ~2 million hours (approximate)
Reliability Rating: Enterprise-class, 24×7 operation

PHYSICAL:
Form Factor: 3.5-inch Large Form Factor (LFF) drive
Typical Dimensions: Standard 3.5-inch drive (approx. 146 mm × 101.6 mm × 25.4 mm)
Weight: ~0.9 kg (~2 lbs)
