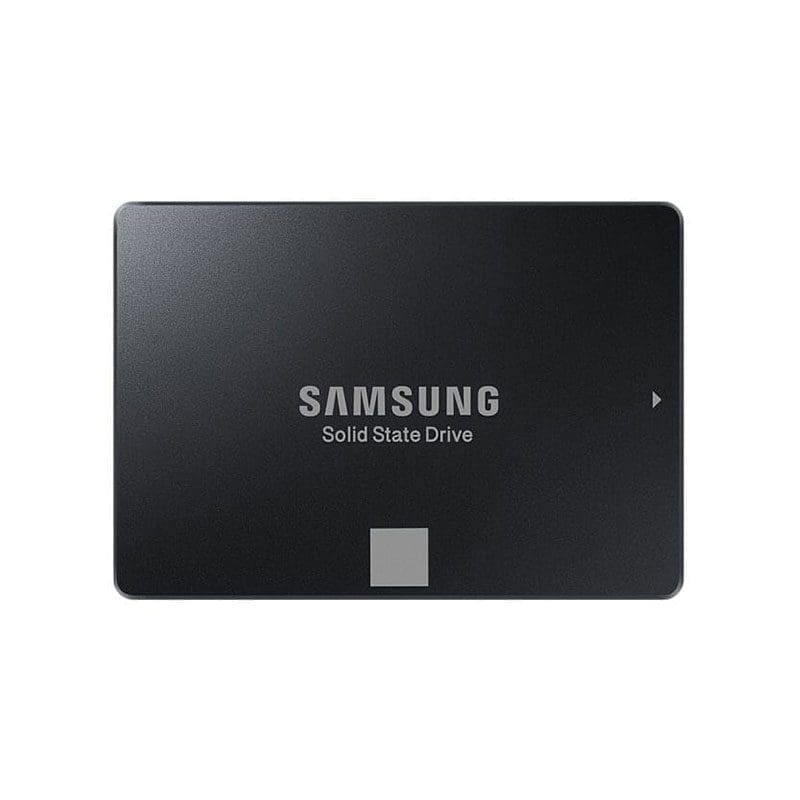

MZ-7LM1T9B Samsung PM863A 1.92TB SATA-6GBPS 2.5inch SSD

MZ-7LM1T9B Specifications

Samsung MZ‑7LM1T9B 1.92 TB SATA 6 Gb/s 2.5″ SSD (PM863a Series)

Manufacturer: Samsung
Manufacturer Model: MZ-7LM1T9B
Product Line: PM863a Series
Product Series: Read‑Intensive (RI) Enterprise SATA SSD
Product Type: Internal Solid State Drive
Product Name: Samsung MZ‑7LM1T9B 1.92 TB SATA 6 Gb/s 2.5″ SSD

KEY FEATURES:
Storage Capacity: 1.92 TB
Interface Type: Serial ATA (SATA) 6 Gb/s
Form Factor: 2.5‑inch Small Form Factor (SFF)
Drive Type: Hot‑plug / enterprise‑class
Flash Type: Triple‑Level Cell (TLC) V‑NAND
Data Transfer Rate: Sequential Read up to ~520 MB/s, Write up to ~480 MB/s
Random Read IOPS: Up to ~97,000 IOPS
Random Write IOPS: Up to ~24,000 IOPS
Compatibility: Designed for enterprise read‑intensive workloads (servers, data center)
Features Supported: End‑to‑end data protection, S.M.A.R.T., TRIM, Power‑Loss Protection, AES 256‑bit encryption support

PERFORMANCE:
Maximum Sequential Read Speed: Up to ~520 MB/s
Maximum Sequential Write Speed: Up to ~480 MB/s
Random Read IOPS (4 KB, QD32): Up to ~97,000
Random Write IOPS (4 KB, QD32): Up to ~24,000
Endurance (TBW for 1.92 TB version): ~2,733 TB written
MTBF (Mean Time Between Failures): ~2,000,000 hours

ENVIRONMENTAL & RELIABILITY:
Operating Temperature Range: 0 °C to 70 °C
Storage Temperature Range: Not explicitly specified
Operating Humidity Range: Not explicitly specified
Shock Resistance / Vibration Resistance: Not explicitly specified
Reliability Features: Enterprise class, TLC V‑NAND, end‑to‑end protection

PHYSICAL:
Dimensions (W × D × H): 100.2 × 69.85 × 6.8 mm
Weight: Up to ~60 g
Color: Not explicitly specified
