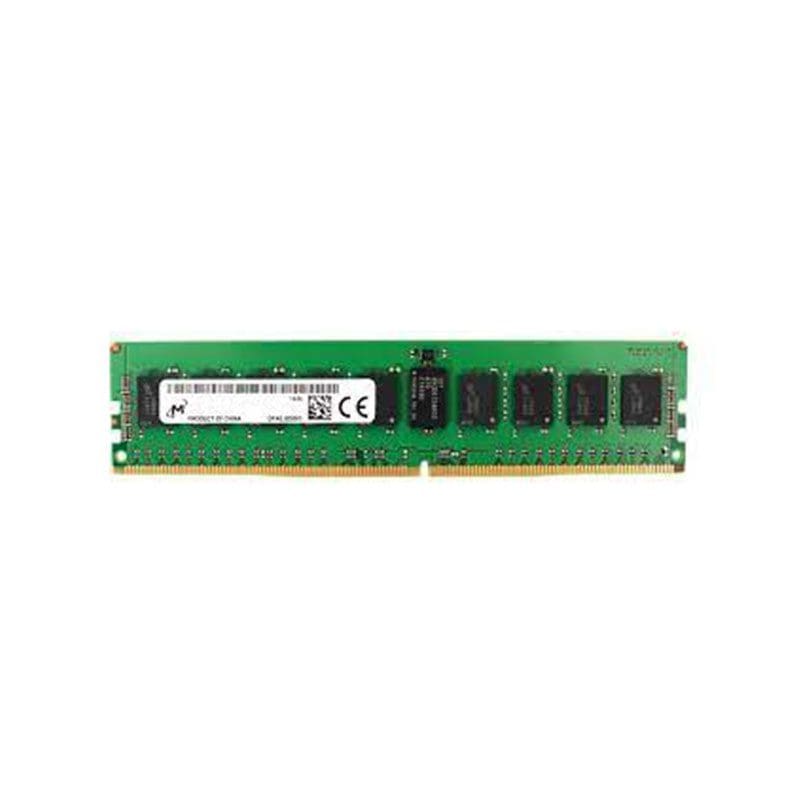

MTA36ASF4G72PZ-2G6E1 Micron 32GB 1X32GB PC4-21300

MTA36ASF4G72PZ-2G6E1  Specifications

Micron 32 GB DDR4‑2666 ECC Registered RDIMM

Manufacturer: Micron
Manufacturer Model: MTA36ASF4G72PZ-2G6E1
Product Line: Micron Server Memory
Product Series: DDR4 RDIMM
Product Type: ECC Registered Memory Module
Product Name: Micron 32 GB DDR4‑2666 ECC Registered RDIMM

KEY FEATURES:
Storage Capacity: 32 GB
Memory Type: DDR4 SDRAM
Form Factor: 288‑pin DIMM, Registered (RDIMM)
Voltage: 1.20 V
Speed / Data Rate: 2666 MT/s (PC4‑21300)
ECC Support: Yes (Error‑Correcting Code)
Ranks: Dual rank (2R × 4)
Compatibility: Designed for servers/workstations with ECC Registered memory
Features Supported: On‑die termination (ODT), I²C temperature sensor, SPD EEPROM

PERFORMANCE:
Maximum Data Transfer Rate: 2666 MT/s
CAS Latency: CL19
Random Read IOPS: Not explicitly specified
Random Write IOPS: Not explicitly specified
Sequential Read Speed: Not explicitly specified
Sequential Write Speed: Not explicitly specified

ENVIRONMENTAL & RELIABILITY:
Operating Temperature Range: 0 °C to 95 °C
Storage Temperature Range: Not explicitly specified
Operating Humidity: Not explicitly specified
Shock Resistance: Standard server memory specification
Vibration Resistance: Standard server memory specification

PHYSICAL:
Dimensions (W × D × H): 288‑pin RDIMM, module height ~31.25 mm
Weight: Not explicitly specified
Color: Green PCB
