MBDX10SATO SuperMicro X10SAT Socket LGA 1150

MBDX10SATO Specifications

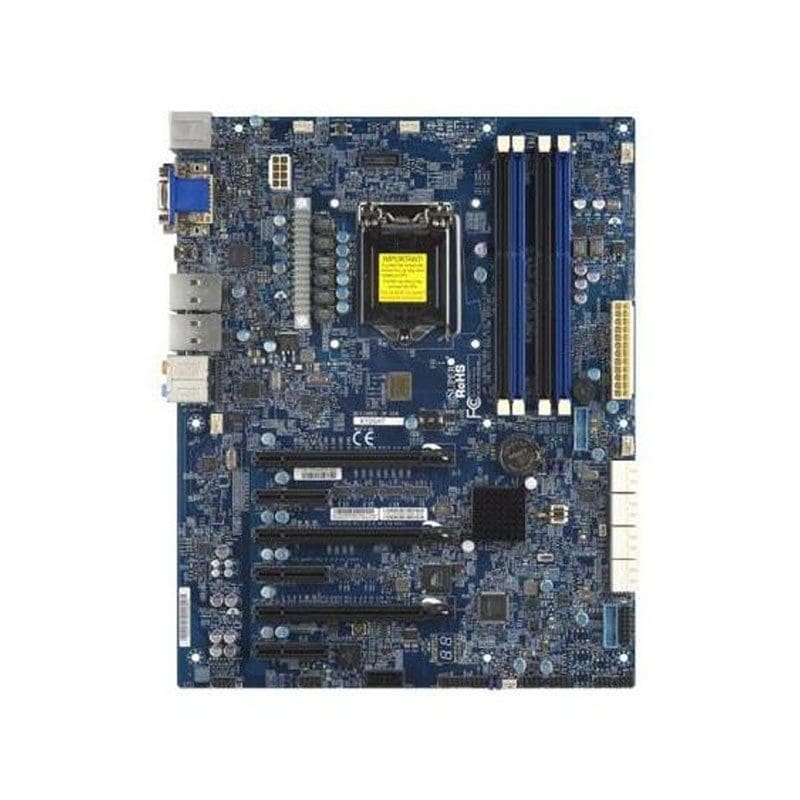

Supermicro X10SATO Server Motherboard

Manufacturer: Supermicro
Manufacturer Model: MBDX10SATO
Product Line: X10
Product Series: X10SATO
Product Type: Server Motherboard
Product Name: Supermicro X10SATO Server Motherboard

KEY FEATURES:
CPU Socket: 1 × LGA 1150 (Socket H3), supports Intel Xeon E3-1200 v3/v4, 4th/5th Gen Core i3/i5/i7, Pentium, Celeron
Chipset: Intel C226 Express
Memory: 4 × DDR3 UDIMM slots, up to 32 GB, ECC/non‑ECC
SATA Ports: 8 × SATA III (6 Gb/s)
Network: Dual Gigabit Ethernet
Expansion Slots: 3 × PCIe 3.0 ×16, 3 × PCIe 2.0 ×1
USB Ports: 8 × USB 3.0, 6 × USB 2.0
Audio: 7.1‑channel HD Audio (Realtek ALC1150)
Features Supported: IPMI 2.0, KVM-over-LAN, RAID 0/1/5/10

PERFORMANCE:
BIOS: UEFI
On-board Monitoring: CPU and chassis temperature, voltage, fans

ENVIRONMENTAL & RELIABILITY:
Operating Temperature Range: 0°C – 50°C
Storage Temperature Range: Not explicitly specified
Operating Humidity: Not explicitly specified
Shock Resistance: Not explicitly specified
Vibration Resistance: Not explicitly specified

PHYSICAL:
Form Factor: ATX
Dimensions (W x D x H): 12″ × 9.6″
Weight: Not explicitly specified
Color: Not explicitly specified
