MAXIMAL3RD Altronix 16 PTC Class 2 Outputs P/S at discount

MAXIMAL3RD Specifications

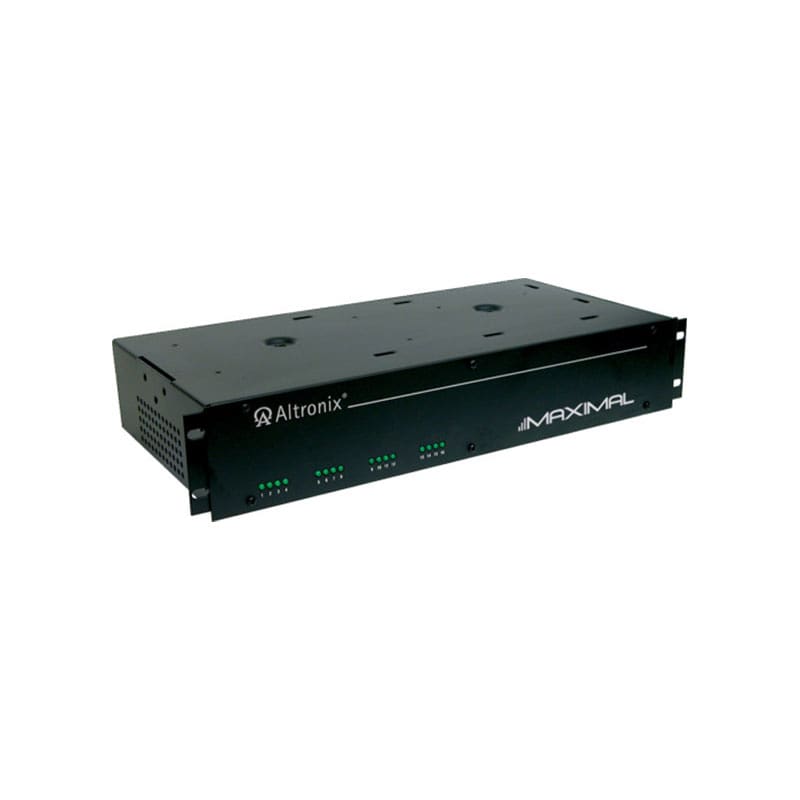

Altronix MAXIMAL3RD Access Power Controller w/ Power Supply/Charger, 16 PTC Relay Outputs, 12/24 VDC @ 6 A, 115 VAC, 2U

Manufacturer: Altronix
Manufacturer Model: MAXIMAL3RD
Product Line: Maximal R Series
Product Series: Rack‑Mount, 16‑output (PTC)
Product Type: Access Power Controller w/ Power Supply/Charger
Product Name: Altronix MAXIMAL3RD Access Power Controller with Power Supply/Charger

KEY FEATURES:
Number of Outputs: 16 PTC relay (auto‑resettable) outputs
Output Voltage Options: 12 VDC or 24 VDC
Total Output Current: 6 A (12 VDC or 24 VDC)
Input Voltage: 115 VAC, 50/60 Hz
Form Factor: 2U, EIA 19″ rack‑mount chassis
Operation Modes: Supports Fail‑Safe or Fail‑Secure configuration per output
Fire Alarm Disconnect: Individually selectable for any or all of the outputs
Trigger Input: Supports normally open (NO) or normally closed (NC) dry contact input from access control systems

PERFORMANCE:
Input Current: Approximately 1.9 A at 115 VAC
Maximum Current per Output: Up to ~2.0 A per ACM8R‑M output
Total Output Current: 6 A at 12 VDC or 24 VDC

ENVIRONMENTAL & RELIABILITY:
Operating Temperature Range: 0 °C to 49 °C (32 °F to 120 °F)
Storage Temperature Range: –20 °C to 70 °C (–4 °F to 158 °F)
Operating Humidity: Up to 85% ± 5%
Shock Resistance: Not explicitly specified
Vibration Resistance: Not explicitly specified
Supervision Features: AC fail “Form C” contact, battery fail/presence monitoring “Form C” contact
Battery Charging: Built‑in charger for sealed lead‑acid/gel‑type batteries; instantaneous transfer upon AC loss

PHYSICAL:
Dimensions (W × D × H): 486 mm × 216 mm × 83 mm (19.12″ × 8.5″ × 3.25″)
Weight: Approximately 4.92 kg (10.85 lb)
Color/Finish: Not explicitly specified
