MAX3147NC Specifications

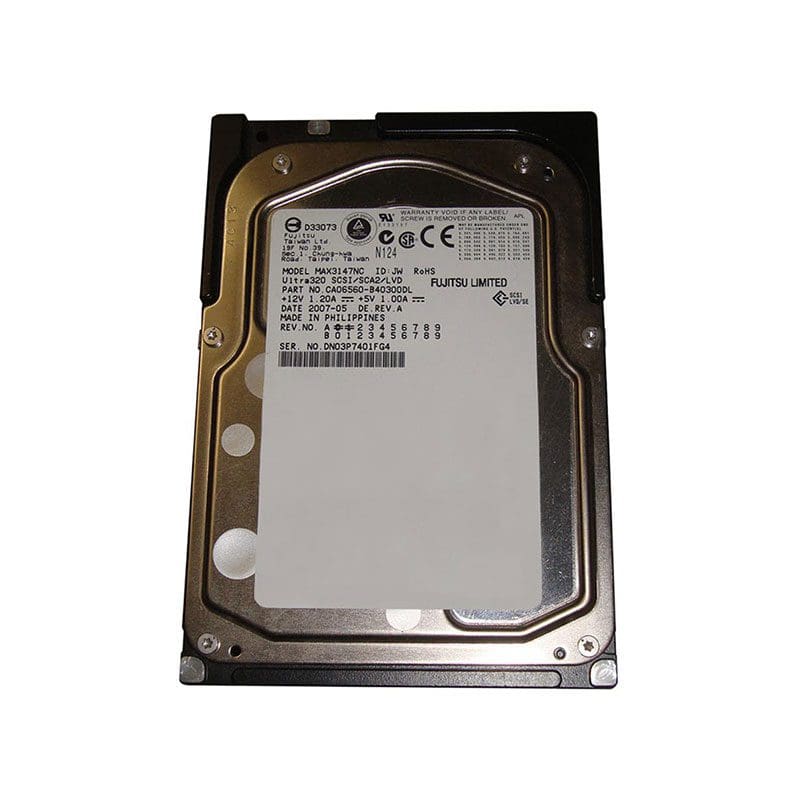

Fujitsu MAX3147NC 147 GB 3.5‑inch Ultra320 SCSI 15,000 RPM Hard Drive
KEY FEATURES
Storage Capacity: 147 GB
Interface Type: Ultra320 SCSI
Form Factor: 3.5‑inch
Cache Memory: 8 MB
Recording Technology: 32/34 MEEPRML
Drive Type: Internal Hard Drive
Target Use: Enterprise servers, storage arrays, and high-performance computing systems
PERFORMANCE
Maximum Data Transfer Rate: 320 MB/s
Spindle Speed: 15,000 RPM
Average Seek Time: 3.3 ms (read), 3.8 ms (write)
Track-to-Track Seek Time: 0.2 ms (read), 0.4 ms (write)
Full Stroke Seek Time: 8.0 ms (read), 9.0 ms (write)
Average Latency: 2.00 ms
Optimized for high-speed data access and reliability
PHYSICAL
Standard 3.5‑inch size
Height: 25.4 mm
Width: 101.6 mm
Depth: 146.0 mm
Weight: 750 g
RELIABILITY & ENVIRONMENTAL
Mean Time Between Failures (MTBF): 1,400,000 hours
Operating Temperature Range: 5°C to 55°C
Non-Operating Temperature Range: –40°C to 70°C
Operating Shock Resistance: 65 G (2 ms)
Non-Operating Shock Resistance: 250 G (2 ms)
Operating Vibration: 0.6 mm at 5–20 Hz / 1.0 G at 20–300 Hz
Non-Operating Vibration: 3.1 mm at 5–20 Hz / 5.0 G at 20–300 Hz
ADDITIONAL FEATURES
Hot-Swap Capable: Yes
Native Command Queuing (NCQ): Yes
Thermal Fly Height Control (TFC): Yes
Staggered Spin-up Technology: Yes
Whisper Quiet with Fluid Dynamic Bearing (FDB) Motors: Yes
RoHS Compliant: Yes
