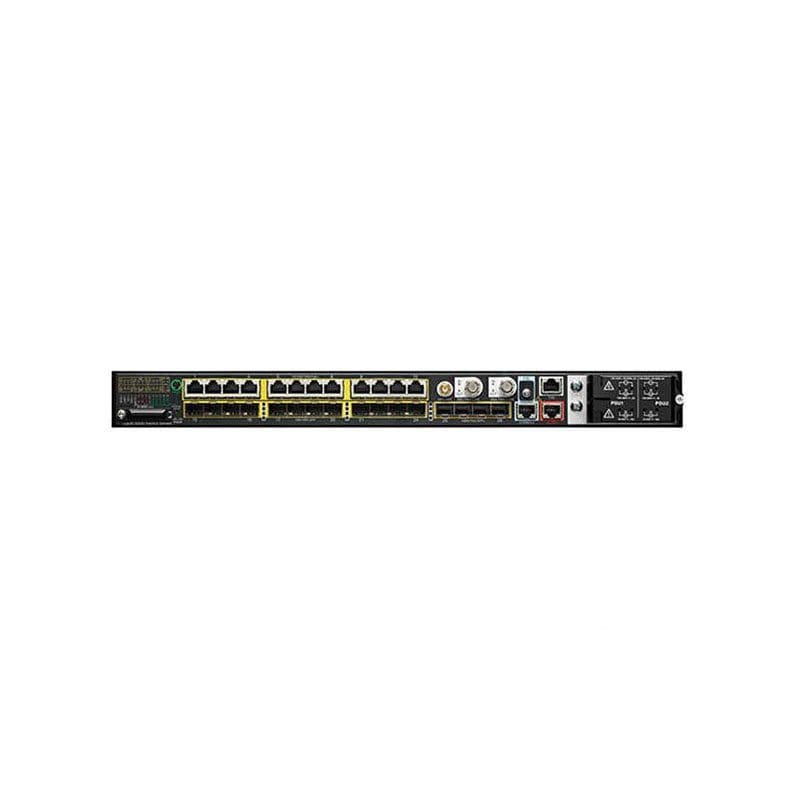

IE-4010-16S12P Cisco Industrial Eth 4010,12 PoE+ at discount

IE-4010-16S12P Specifications

Cisco Industrial Ethernet 4010 Series 28‑Port Rugged Managed Switch

Manufacturer: Cisco
Manufacturer Model: IE-4010-16S12P
Product Line: Industrial Ethernet 4000 / IE 4010 Series
Product Series: IE‑4010
Product Type: Industrial Layer‑2 / Layer‑3 Switch
Product Name: Cisco IE‑4010‑16S12P Industrial Ethernet Switch

KEY FEATURES:
Total Ports: 28
Uplink Ports: 4 × SFP (100 Mb / 1 Gb)
SFP Fiber Ports: 12 × 100/1000 Mb
Copper PoE / PoE+ Ports: 12 × 10/100/1000 Mb
Default Software: LAN Base (upgradeable to IP Services)
Hardware: 1 GB DRAM; 128 MB onboard flash; 1‑GB removable SD flash; Mini‑USB & RJ-45 console
Alarm I/O: 4 dry‑contact inputs + 1 Form C output relay

PERFORMANCE:
Forwarding Bandwidth: 28 Gbps
Switching Bandwidth (full‑duplex): 56 Gbps
Forwarding Rate: ~41.67 Mpps (64‑byte packets)
Queues: 4 egress
MAC Table: 16,000 entries
VLANs Supported: Up to 1000
IGMP Multicast Groups: Up to 1000
NAT Translations: 128 (or more, depending on design)

SECURITY & PROTOCOLS:
Supported Protocols: IEEE 802.3, 802.3u, 802.3ad, 802.1D, 802.1Q, 802.1w, 802.1s, 802.1x, 802.3af/at, 1588v2, etc.
Routing: Static IPv4, IGMP v2/v3
Management: Web GUI, CLI, SNMP v1/v2/v3, RMON, Telnet, HTTP, SSH, SCP
Security: RADIUS, TACACS, 802.1x, MACsec, ACLs, DHCP Snooping, IP Source Guard, 1588 PTP, etc.

ENVIRONMENTAL & RELIABILITY:
Operating Temperature: ‑40 °C to +75 °C
Storage Temperature: According to industrial spec
Humidity: 5%–95% non-condensing
Fans: None (fanless, designed for rugged environments)
MTBF: ~415,160 hours

POWER:
Power Supply: Supports 2 field-replaceable, redundant AC or DC power supplies
Power Consumption (no PoE): Up to ~70 W
PoE Budget: Depends on PSU — up to 180 W with 250 W PSU, up to 360 W with dual 250 W PSUs

PHYSICAL:
Dimensions (H × W × D):

With PWR‑RGD‑AC‑DC‑H or PWR‑RGD‑LOW‑DC‑H: 1.75″ × 17.5″ × 14.0″ (4.45 × 44.5 × 35.6 cm)

With PWR‑RGD‑AC‑DC‑250: 1.75″ × 17.5″ × 15.18″ (4.45 × 44.5 × 38.56 cm)
Weight: ~12.7 lb (5.78 kg) without PSU
Form Factor: 1U rack-mountable / DIN-rail capable (industrial)
Color: Rugged industrial black

MANAGEMENT & FEATURES:
Alarm I/O support for external monitoring and signaling
Zero-touch Express Setup via GUI
Industrial protocols: PROFINET, EtherNet/IP, REP (Resilient Ethernet Protocol), SmartPort, CIP Sync (IEEE 1588), etc.

REGULATORY / COMPLIANCE:
Designed for industrial standards: rugged design, shock, vibration, surge, EMI resilience

WARRANTY:
Standard Cisco industrial hardware warranty (varies by distributor / service contract)
