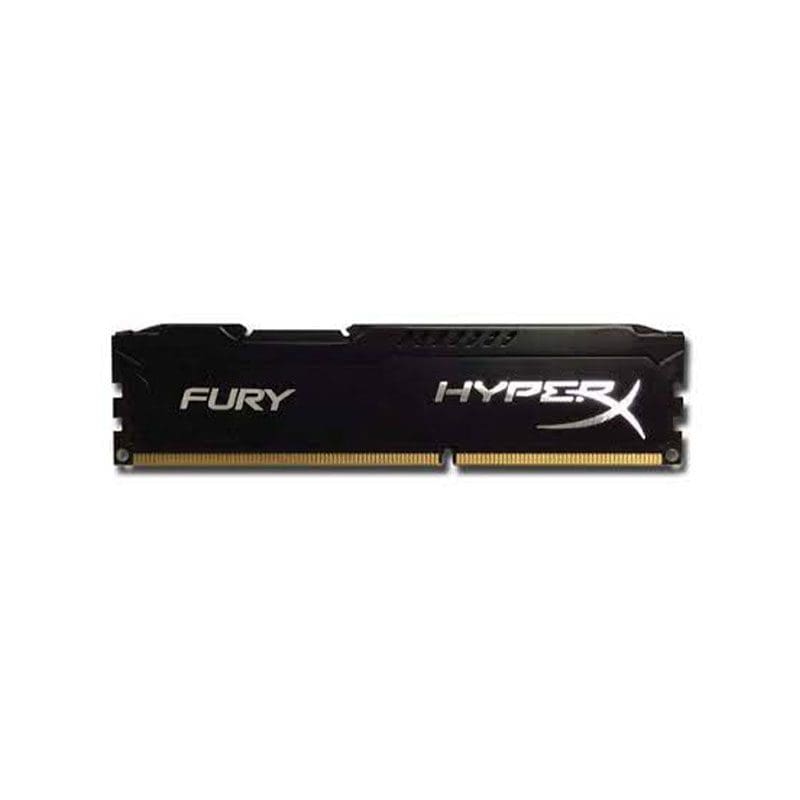

HX432C16FB4/16 HyperX FURY DDR4 module 16 GB

HX432C16FB4/16 Specifications

Kingston HyperX Fury 16GB DDR4-3200 DIMM

Manufacturer: Kingston Technology
Manufacturer Model: HX432C16FB4/16
Product Line: HyperX Fury
Product Series: DDR4 3200 MHz DIMM
Product Type: Internal Memory Module (RAM)
Product Name: Kingston HyperX Fury 16GB DDR4-3200 288-Pin DIMM

KEY FEATURES:
Memory Capacity: 16GB
Memory Type: DDR4 SDRAM
Interface Type / Speed: DDR4-3200 MHz (PC4-25600)
Form Factor: 288-pin DIMM
Module Type: Unbuffered, Non-ECC
Voltage: 1.2V (JEDEC) / 1.35V (XMP)
Module Configuration: 1Rx8 (Single-Rank)
DRAM Components: 2G × 8-bit chips (8 per module)
Heat Spreader: Yes
Features Supported: Intel XMP 2.0 profiles, on-die termination (ODT), burst-length on-the-fly, standard DDR4 features

PERFORMANCE:
Default (JEDEC) Timing: DDR4-2400 CL17-17-17 @ 1.2V
XMP Profile #1: DDR4-3200 CL16-20-20 @ 1.35V
Alternate XMP Profile: DDR4-3000 CL16-19-19 @ 1.35V
CAS Latency: CL16 (at 3200MHz)
Row Cycle Time (tRCmin): 45.75 ns
Row Active Time (tRASmin): 32 ns
Refresh Cycle Time (tRFCmin): 350 ns

ENVIRONMENTAL & RELIABILITY:
Operating Temperature Range: 0°C to 85°C
Storage Temperature Range: –55°C to 100°C
Operating Humidity: Not explicitly specified
Shock Resistance: Not explicitly specified
Vibration Resistance: Not explicitly specified

PHYSICAL:
Form Factor: 288-pin DIMM
Dimensions (L × H): 133.35 mm × 34.1 mm
Color: Black heat spreader
Module Rank: Single-Rank (1Rx8)
Weight: Not explicitly specified
