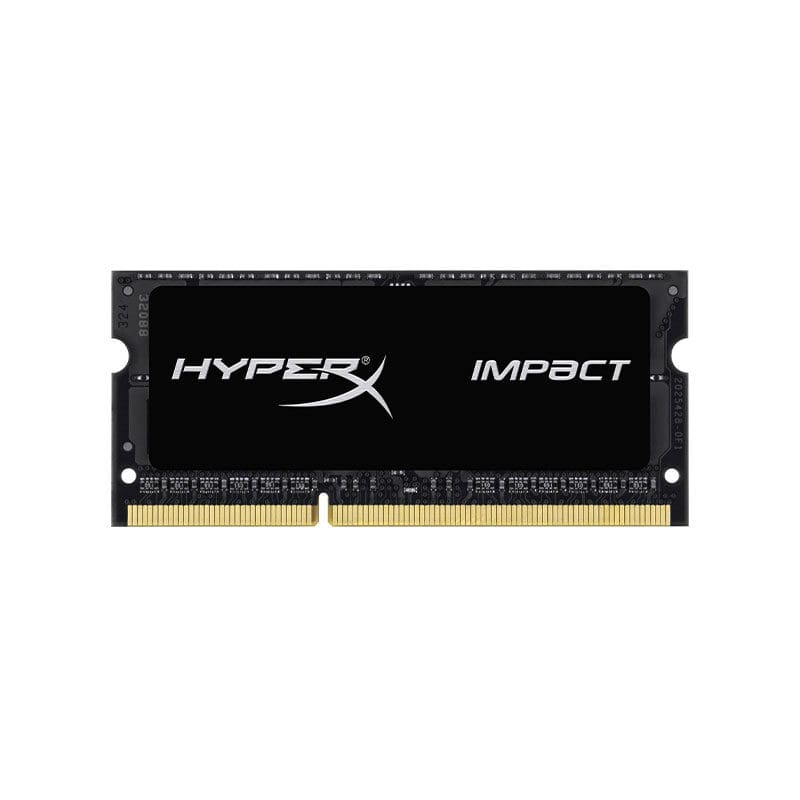

HX426S16IB2/16 HyperX Impact DDR4 module 16GB

HX426S16IB2/16 Specifications

HyperX Impact 16 GB DDR4‑2666 SO‑DIMM

Manufacturer: Kingston / HyperX
Manufacturer Model: HX426S16IB2/16
Product Line: HyperX Impact
Product Series: DDR4 2666 MHz SO‑DIMM
Product Type: Internal Memory Module (RAM for laptop/notebook)
Product Name: HyperX Impact 16 GB DDR4‑2666 260‑Pin SO‑DIMM

KEY FEATURES:
Memory Capacity: 16 GB
Memory Type: DDR4 SDRAM
Interface / Speed: DDR4‑2666 MHz (PC4‑21300)
Form Factor: 260‑pin SO‑DIMM
Module Type: Unbuffered, Non‑ECC
Voltage: 1.2 V typical
Module Configuration: 1Rx8 (single‑rank)
DRAM Chip Organization: 2G × 64‑bit (based on eight 2G × 8‑bit FBGA chips)
Features Supported: On‑Die Termination (ODT), standard DDR4 compliance, Intel XMP 2.0 profile support

PERFORMANCE:
Memory Speed: 2666 MHz
CAS Latency (CL): 16
Typical Timing: 16‑18‑18 @ 1.2 V
Row Cycle Time (tRCmin): 45 ns (minimum)
Row Active Time (tRASmin): 26.25 ns (minimum)
Refresh-to-Active / Refresh Command Time (tRFCmin): 350 ns (minimum)

ENVIRONMENTAL & RELIABILITY:
Operating Temperature Range: 0 °C to +85 °C
Storage Temperature Range: –55 °C to +100 °C
Operating Humidity / Shock / Vibration Resistance: Not explicitly specified

PHYSICAL:
Form Factor: 260‑pin SO‑DIMM
Module Height: approx. 30 mm (height of the SO‑DIMM)
Color / Appearance: Typical black PCB (without bulky heatsink — compact SODIMM design)
Weight: Not explicitly specified
