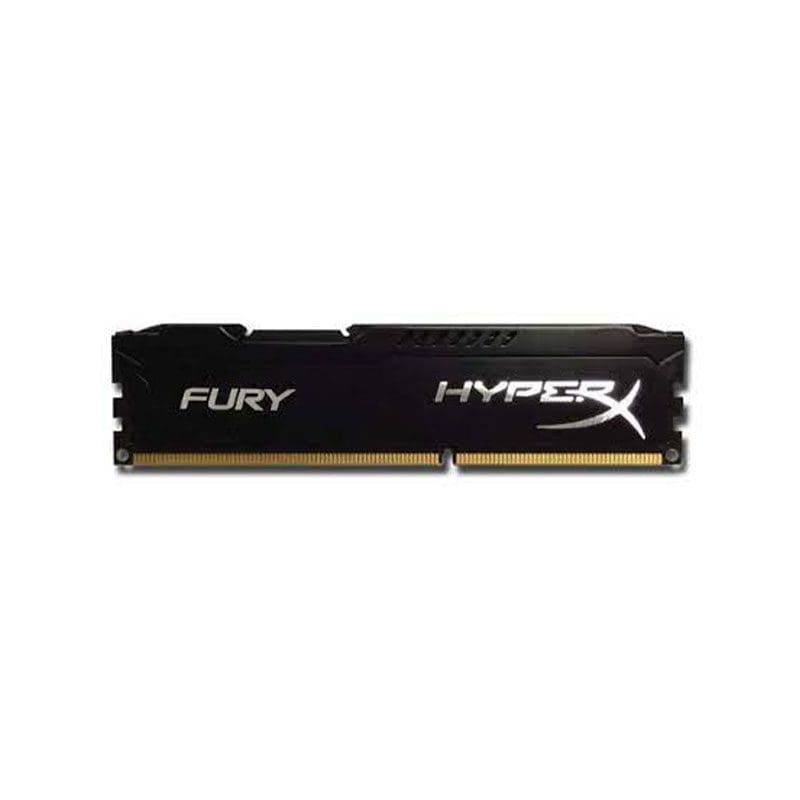

HX426C16FB3/16 HyperX FURY DDR4 module 16GB

HX426C16FB3/16 Specifications

HyperX Fury 16 GB DDR4‑2666 DIMM

Manufacturer: Kingston / HyperX
Manufacturer Model: HX426C16FB3/16
Product Line: HyperX Fury
Product Series: DDR4‑2666 DIMM
Product Type: Internal Memory Module (RAM)
Product Name: HyperX Fury 16 GB DDR4‑2666 288‑Pin DIMM

KEY FEATURES:
Memory Capacity: 16 GB
Memory Type: DDR4 SDRAM
Interface Type / Speed: DDR4‑2666 MHz (PC4‑21300)
Form Factor: 288‑pin DIMM
Module Type: Unbuffered, Non‑ECC
Voltage: 1.2 V typical
Module Configuration: 2Rx8 (dual‑rank), built from sixteen 1G × 8‑bit FBGA chips per module
Heat Spreader / Cooling: Yes (low‑profile heatsink, black)
Features Supported: On‑Die Termination (ODT), burst‑length on‑the-fly (BL8 or BC4), standard DDR4 JEDEC electrical/mechanical compliance, Intel XMP 2.0 support

PERFORMANCE:
Memory Speed: 2666 MHz
CAS Latency: CL16 (timings 16‑18‑18 @ 1.2 V)
Row Cycle Time (tRCmin): 45.75 ns (minimum)
Row Active Time (tRASmin): 29.25 ns (minimum)
Refresh-to-Active / Refresh Command Time (tRFCmin): 350 ns (minimum)

ENVIRONMENTAL & RELIABILITY:
Operating Temperature Range: 0 °C to +85 °C
Storage Temperature Range: –55 °C to +100 °C
Error Checking: Non‑ECC (no error correction)

PHYSICAL:
Form Factor: 288‑pin DIMM
Module Dimensions (with heatsink): 133.35 mm (length) × 34.1 mm (height) × ~7.2 mm (thickness)
Color / Appearance: Black heat‑spreader (HyperX Fury Black)
Weight: ~ 36 g (typical for single module)
