HX-HD10T7KL6GN Cisco 10TB SATA 6Gbps HDD at discount

HX-HD10T7KL6GN Specifications

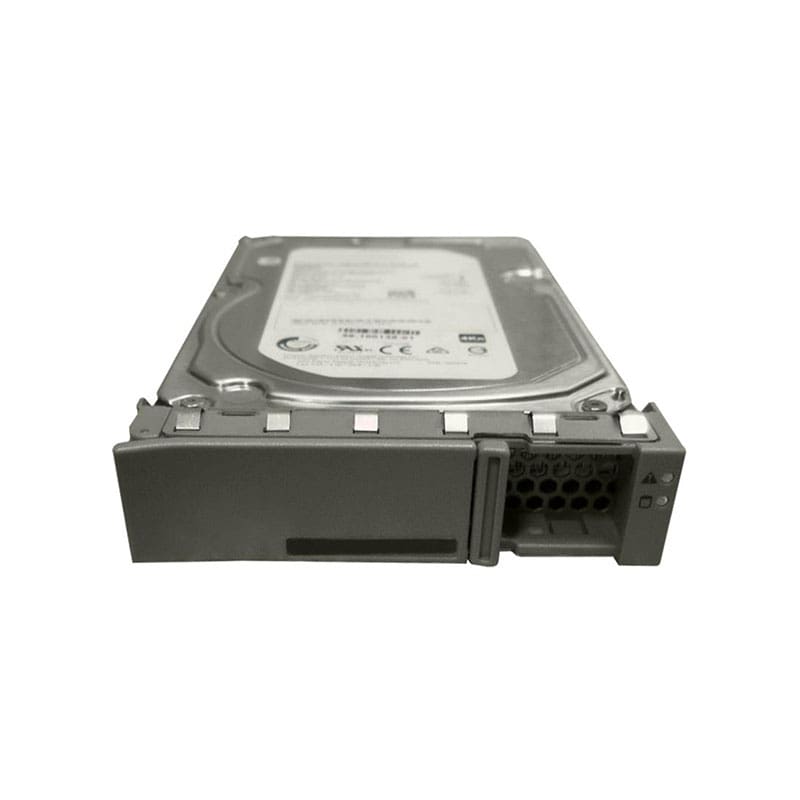

Cisco 10TB 3.5″ SATA 6G 7.2K RPM LFF HDD

Manufacturer: Cisco
Manufacturer Model: HX-HD10T7KL6GN
Product Line: Cisco UCS / HyperFlex
Product Series: HX Series Enterprise Capacity Drives
Product Type: Internal Hard Disk Drive (HDD)
Product Name: Cisco 10TB 3.5″ SATA 6Gb/s 7.2K RPM 512e Enterprise HDD

KEY FEATURES:

Storage Capacity: 10 TB
Interface Type: Serial ATA (SATA) 6 Gb/s
Form Factor: 3.5-inch Large Form Factor (LFF)
Drive Type: Hot-plug / Hot-swap compatible
Rotational Speed: 7,200 RPM (7.2K)
Sector Format: 512e (512-emulated)
Data Transfer Rate: Up to 600 MB/s (via SATA 6 Gb/s)
Compatibility: Designed for Cisco UCS / HyperFlex servers and large-capacity storage tiers
Features Supported: Enterprise-class reliability, high-capacity nearline SATA, 24×7 operation, hot-swap capability

PERFORMANCE:

Maximum Data Transfer Rate: Up to 6 Gb/s (SATA interface)
Sustained Throughput: ~200–250 MB/s (typical for 10 TB 7.2K SATA drives)
Average Latency: ~4.16 ms
Random Read IOPS: ~75–90 IOPS (typical)
Random Write IOPS: ~75 IOPS (typical)
Cache Buffer: 256 MB (varies by OEM drive)

ENVIRONMENTAL & RELIABILITY:

Operating Temperature Range: 5 °C – 60 °C (41 °F – 140 °F)
Storage Temperature Range: -40 °C – 70 °C (-40 °F – 158 °F)
Operating Humidity: 5 – 90% non-condensing
Shock Resistance: 70 G (2 ms read/write), 300 G (non-operating)
Vibration Resistance: 0.5 G (5–500 Hz, operating)
Mean Time Between Failures (MTBF): 2 million hours
Workload Rate Limit: Up to 550 TB/year
Reliability Rating: Enterprise Nearline SATA

PHYSICAL:

Dimensions (W × D × H): 101.6 mm × 147 mm × 26.1 mm (3.5-inch LFF)
Weight: Approximately 720 g (1.6 lb)
Color: Silver / Black (standard Cisco drive carrier)
