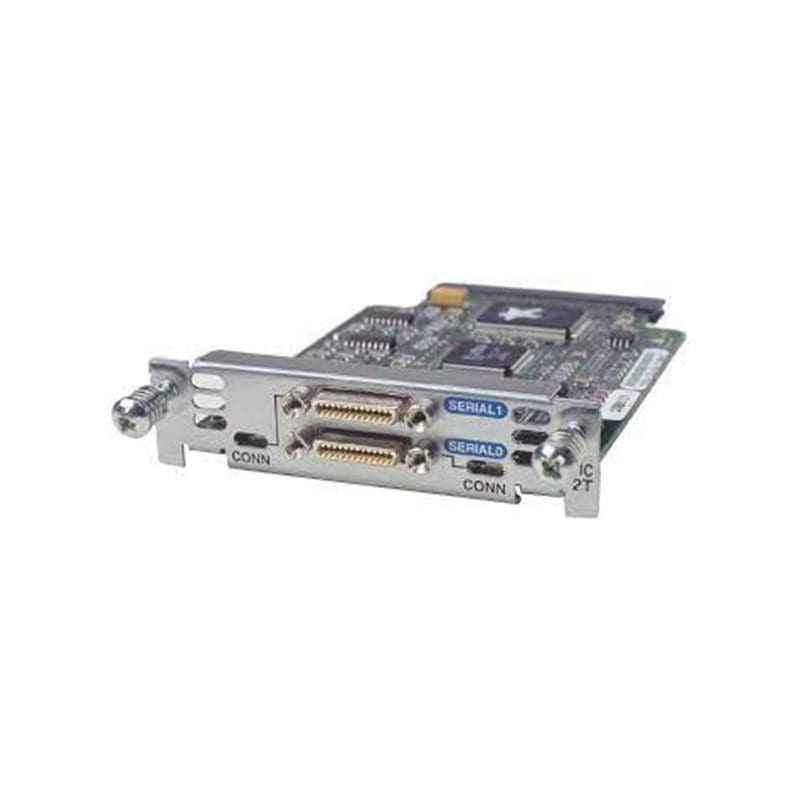

HWIC-2T Cisco High-Speed Expansion Module at discount

HWIC‑2T Specifications

Cisco 2‑Port Serial High‑Speed WAN Interface Card

Manufacturer: Cisco
Manufacturer Model: HWIC‑2T
Product Line: Cisco High‑Speed WAN Interface Cards
Product Series: Serial WAN Interface Module
Product Type: Expansion Network Module (Serial)
Product Name: Cisco HWIC‑2T 2‑Port Serial WAN Interface Card

KEY FEATURES:
Port Count: 2 x serial ports (Smart Serial)
Interface Type: Universal serial interface supporting synchronous and asynchronous modes
Synchronous Data Rate: Up to 8 Mbps per port
Asynchronous Data Rate: Up to 115.2 kbps per port
Supported Serial Protocols: EIA‑232, V.35, X.21, EIA‑530, EIA‑449 (platform/config dependent)
Bisync Support: Yes
Clocking Support: Network clock synchronization
Compatible Platforms: Cisco ISR routers with HWIC slots (e.g., Cisco 1800, 1900, 2800, 2900, 3800, 3900 Series)

PERFORMANCE:
Serial throughput optimized for legacy WAN, leased‑line links, and low‑density WAN aggregation
Supports common serial WAN protocols (e.g., HDLC, PPP, Frame Relay, X.25) depending on router IOS configuration
Provides two independent serial interfaces for WAN connectivity

ENVIRONMENTAL & RELIABILITY:
Operating Temperature Range: Typical commercial range (0 °C to 40 °C)
Storage Temperature Range: Typical commercial storage range (–20 °C to 65 °C)
Relative Humidity: 10 % to 90 % non‑condensing
NEBS Compliance: Type 2/4 rated
Safety & Emissions: Meets standard safety and emissions requirements

PHYSICAL:
Form Factor: Single‑wide HWIC plug‑in module
Dimensions (approx.): Typical HWIC module size
Weight: Light, low mass module
Power Consumption: Low power usage (platform dependent)
